Exploring Correlation in Statistics

Correlation is a measure of the strength of a linear relationship between two numerical variables.

Why do we care about correlation?

Correlation is important in Statistics because it allows us to quantify the relationship between quantities. For example, you probably have wondered if there’s a relationship between things like the amount of calories you consume and your weight, number of fast-food restaurants in a neighborhood and obesity rates, income and mortality rates, etc. The strength of a linear relationship between quantities like these ones is measured using the linear correlation coefficient. When, we say two variables are correlated, we are saying that the variables seem to have a strong relationship between each other, but be careful, correlation does imply causation.
​
​The correlation coefficient  measures the strength of a linear relationship between two paired numerical variables, and it describes the direction (positive or negative) and strength of a relationship between two variables (how well data fit a straight-line patter).
​
With the help of the Wolfram language and data from the Wolfram repository, we will be able to do an overview of how to calculate and interpret the correlation coefficient .
​
Correlation Coefficient Properties​
​ only measures the strength of a linear relationship. There may be nonlinear relationships.
​ is always between -1 and 1 inclusive. -1 means perfect negative linear correlation and +1 means perfect positive linear correlation
​ has the same sign as the slope of the regression (best fit) line
​ does not change if the independent (x) and dependent (y) variables are interchanged
​ does not change if the scale on either variable is changed. You may multiply, divide, add, or subtract a value to/from all the x-values or y-values without changing the value of r.
​ has a Student’s t distribution

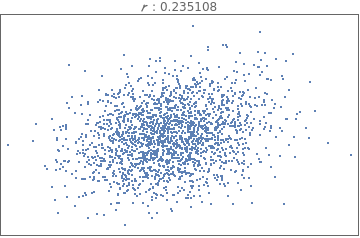

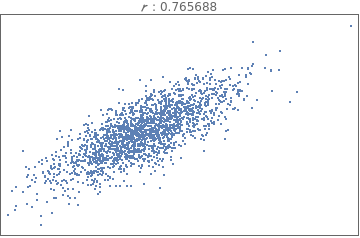

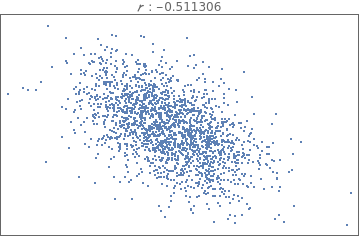

Comparing and interpreting linear strength relationships from scatter plots

In[18]:=
​​data=BlockRandom[SeedRandom[1];​​Table[RandomVariate[BinormalDistribution[i],2000],{i,{-.99,-.75,-.25,-.5,0.,.25,.5,.75,.99}}]];​​
In[19]:=
Grid[Partition[Table[ListPlot[i,PlotStyleDirective[PointSize[Tiny]],FrameTicksNone,FrameTrue,AxesNone,PlotLabelRow[{" : ",Correlation[i][[1,2]]}]],{i,data}],3]]
Out[19]=
​
The data below shows the before and after weight of young women undergoing anorexia treatment. When you look at the data, what kind of questions might you ask?
◼
Obtain data from Wolfram Repository: Before and after weight of young women undergoing anorexia treatment.
In[110]:=
data=ResourceData["Sample Data: Anorexia Treatment"]​​
Out[110]=
Treatment
EntryWeight
ExitWeight
Cont
80.7lb
80.2lb
Cont
89.4lb
80.1lb
Cont
91.8lb
86.4lb
Cont
74lb
86.3lb
Cont
78.1lb
76.1lb
Cont
88.3lb
78.1lb
Cont
87.3lb
75.1lb
Cont
75.1lb
86.7lb
Cont
80.6lb
73.5lb
Cont
78.4lb
84.6lb
Cont
77.6lb
77.4lb
Cont
88.7lb
79.5lb
Cont
81.3lb
89.6lb
Cont
78.1lb
81.4lb
Cont
70.5lb
81.8lb
Cont
77.3lb
77.3lb
Cont
85.2lb
84.2lb
Cont
86lb
75.4lb
Cont
84.1lb
79.5lb
Cont
79.7lb
73lb
showing 1–20 of 72

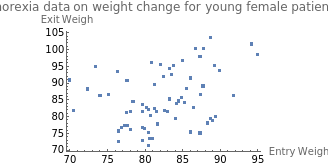

By simply looking at data in a table, it can be difficult to observe whether or not there is a linear relationship between the entry weight and exit weight of the young female patients. A scatter diagram can help us to visualize the distribution of the data.
​
In[111]:=
​​ListPlot[data[All,{"EntryWeight","ExitWeight"}],PlotLabel"Anorexia data on weight change for young female patients",AxesLabel{"Entry Weight","Exit Weigh"}]
Out[111]=
By looking at the scatter plot, would you say there is a correlation between the entry and exit weight of the young female patients? The data is widely scattered, and by visual inspection we can observe there doesn’t seem to be a strong correlation between these two variables, but to be sure, let’s calculate the value of  .
◼
Calculate 
In[112]:=
Correlation[​​Normal@data[All,"EntryWeight"],​​Normal@data[All,"ExitWeight"]​​]​​
Out[112]=
0.332406
Checking for Linear Correlation
We found the value of the linear correlation coefficient,  =0.332406, but what does it mean? To interpret it’s meaning, we can use our knowledge on hypothesis tests and p-values. (* indicates that there is a weak linear relationship between the entry and exit weights, and we can conclude that the weights of the patients are random and there is no evidence to support that the anorexia treatments is effective.*)
(*In cases where we find a strong linear correlation, we can proceed a hypothesis test and find the line best-fit.*)
To interpret the  we refer to the computed p-value, if it is less that or equal to the significance level, we conclude there is a linear correlation

Hypothesis Test using p-value from a a t -Test

Using the previous example, we can conduct a formal hypothesis test of the claim that there is linear correlation between the entry and exit weights.
To claim that there is linear correlation implies that the linear correlation coefficient is not zero.
​
H
o
:ρ=0
There is no linear correlation
​
H
1
:ρ≠0
There is linear correlation
​
(*In cases where we find a strong linear correlation, we can proceed a hypothesis test and find the line best-fit.*)
◼
Plotting the data points and the regression line
In[165]:=
model["ParameterConfidenceIntervalTable"]
Out[165]=
Estimate
Standard Error
Confidence Interval
1
42.7006
14.4311
{13.9186,71.4826}
x
0.51538
0.174777
{0.166799,0.863962}

Coefficient of Variation
2

-
Explained Variation

In cases where we conclude there is a linear correlation between the two variables, we can find a linear equation that expresses y in terms of x (linear regression). The value of
2

is the proportion of the variation in y that is explained by the linear relationship between the two variables.
In[127]:=
model["RSquared"]
Out[127]=
0.110494
What does it mean to say there is a positively or negatively linear relationship between two variables?
​

Practice Questions​Using the Wolfram repository, choose a set of data and create your own notebook to do the following: 1. Load data 2. Create a scatter plot 3. based on the scatter plot, provide an estimation for the value of the correlation coefficient between the two variables and explain your answer. 4. Compute the value of the correlation coefficient

*Hypothesis Test for Correlation
Further Explorations
*Multivariate Correlation
*Nonlinear regression
Authorship information
Silvani Vejar
06/210/2017
