Trace Curves Produced by Crank-Slider Mechanism

​
q
1
100
zoom
1
color
1
2
3
4
5

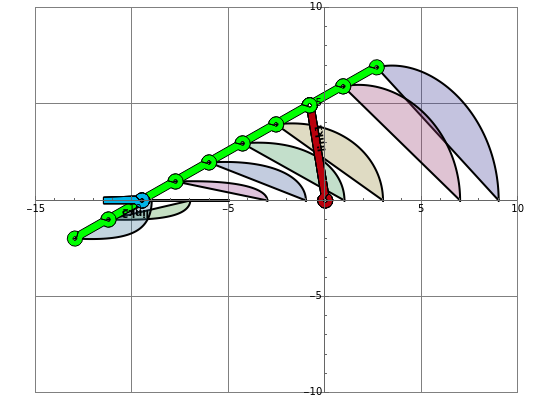

This Demonstration displays the trace curves of the crank-slider mechanism. The trace points are defined on the connecting rod. As the crank link rotates, the trace points draw a series of nice closed curves.
