Representing Elementary Cellular Automaton Rules

​
rule as decimal
110
steps
mesh
decimal rule expanded in powers of 2
​
​
​
​
​
​
​
​
0 128 + 1 64 + 1 32 + 0 16 + 1 8 + 1 4 + 1 2 + 0 1 110
​
​
​
​
​
​
​
​
binary representation of rule
​
​
​
​
​
​
​
​
111
110
101
100
011
010
001
000
0
1
1
0
1
1
1
0
​
​
​
​
​
​
​
​
graphic representation of rule
​
​
​
​
​
​
​
​

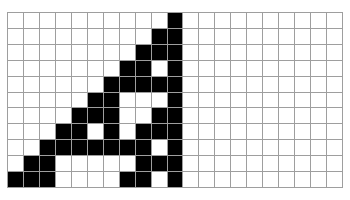

Each cellular automaton rule can be represented as a decimal number obtained by reading its rule icon in base 2. This Demonstration shows this derivation for the elementary cellular automata, as well as the evolution of each automaton from a single black cell.
