Design of Street Gutter

​
flow max
500
flow (l/s)
0
width
4
height
0.1
steepness
5
Manning
0.016

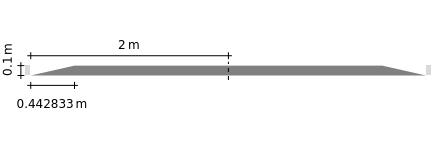

This Demonstration shows 2D and 3D models of a street gutter design according to Brazilian standards, based upon the Manning roughness coefficient and the length, height, and gradient of the road. The water flow along the gutter is shown in light blue, and its maximum value is specified.
