2D Brillouin Zones

​
number of Brillouin zones
3
outermost Brillouin zone only:
lattice:
square
triangular
show Bragg planes

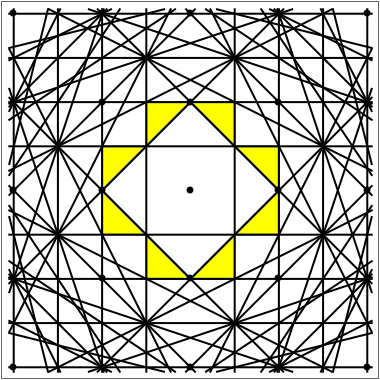

Three steps are needed to construct successive Brillouin zones for 2D lattices.
1. Select one reciprocal lattice point as the origin.
2. Draw the bisectors perpendicular to the line segments connecting the origin with the other reciprocal lattice points (the Bragg lines).
3. The
th
n
Brillouin zone consists of those points in the plane such that a line segment from the point to the origin intersects exactly
n-1
Bragg lines.
