Analog BeatTue 30 May 2023 10:23:24

2023 Problem 06

Isaac P Abraham
​
2023 May 30

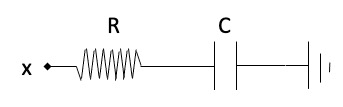

Conventional wisdom says that we can “hide the capacitor’s capacitance (C)” behind a resistor (R), when viewed from net x.
If true, what is the smallest R for which this “conventional wisdom” is (if) true? (Example answer will be “True, R>0”, “False, for any R”, “True for R<C” etc.)
■ Reply no later than a couple of days before the end of the month to isaac.abraham@intel.com, Subject “Analog Beat 2023 Problem #”. Last reply of multiple replies will be considered. Earlier replies help with tie-breaks at the end.
