2020 Solution 10

Isaac Abraham
2020 October 16

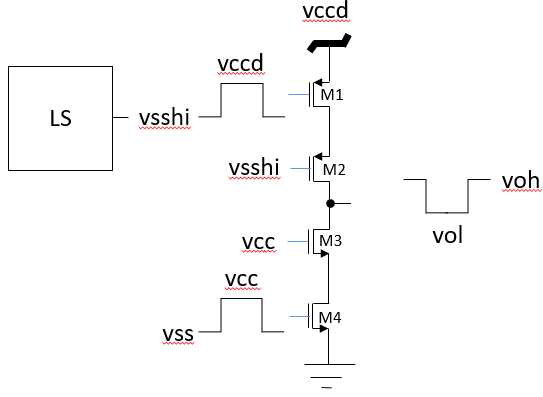

Consider the level translator (LS) driving M1 in the (stacked) inverter. What is the (vol, voh) out of the inverter?
Your answer
When the input is a (logic) "0", M1 and M2 are ON. Therefore the output is voh = vccd V. When the input is a (logic) "1", M3 and M4 are ON. Therefore the output is vol = 0V. The output answer pair is (vol, voh) = (0, vccd).
