2020 Problem 03
Consider the two circuits below.

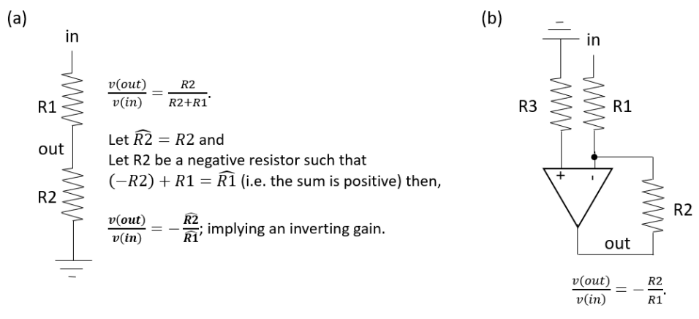

The equations show that the resistor ladder abstraction in (a) and the opamp amplifier in (b) are equivalent. Therefore locate the negative resistor in (b).
(a) R1
(b) R2
(c) R3
(d) R1//R2
(e) There is none.
Your
answer
