2020 Problem 02

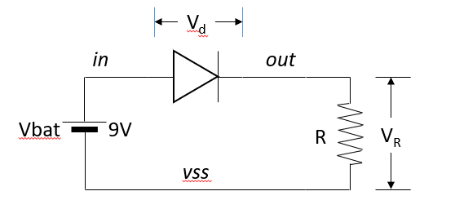

The I-V characteristic of the simple diode is described by the
Shockley
(follow the link) equation. Consider R to be finite.
When the temperature of the diode is increased the voltage drop Vd across the diode,
(a) Increases
(b) Decreases
(c) Unchanged
(d) 0.0
(e) Undefined
Your
answer
