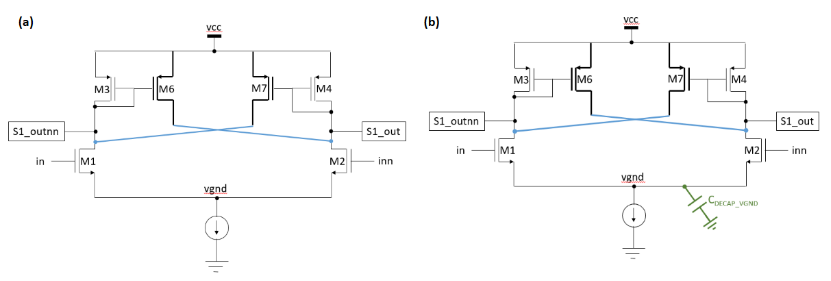

Consider the two circuits below.
Circuit _[a,b]___ is likely to have better _[commonly accepted spec abbreviation or phrase or a clear description]___
For example you might answer like: a, f3dB or b, power supply rejection ratio.
For example you might answer like: a, f3dB or b, power supply rejection ratio.
Circuit _a _ is likely to have better _CMRR _
The decoupling from vgnd to ground shorts the signal, removing the ability to reject (or cancel) common mode signals.
The decoupling from vgnd to ground shorts the signal, removing the ability to reject (or cancel) common mode signals.
