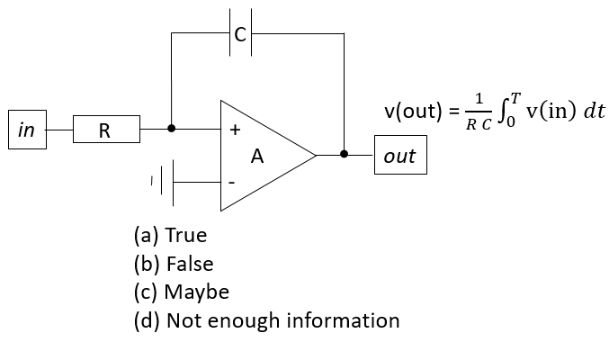

Is the equation for the output of the circuit correct?
The equation is not correct. The reason is that the positive input is not a virtual ground, preventing us from applying the usual circuit analysis. If you apply a sinusoid v(in) the output will be a square wave.
