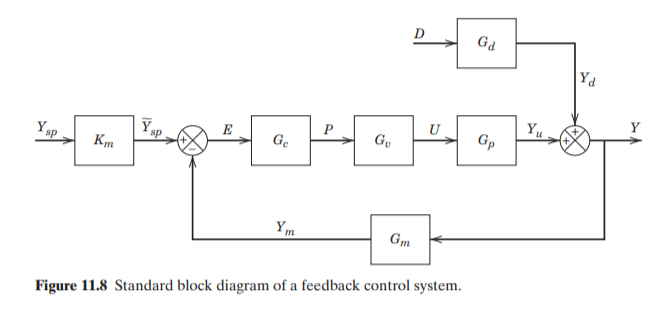

Consider the closed loop shown in Figure 11.8 in [1]​​​
​​​where
G
p
=
1
5s+1
,
G
v
=
1
2s+1
,
G
m
=
1
s+1
,
K
m
=1
, and
G
c
=
K
c
1+
1
5s
.​
​Here, we consider a proportional-integral controller since we have
G
c
=
K
c
1+
1
5s
. We propose to set the value of the control gain
K
c
for a fixed integral time (
τ
I
=5
).
These three integral errors (all truncated at
t=2000
in the calculation shown here) are defined by: ​​
IAE=
∞
∫
0
e(t)dt

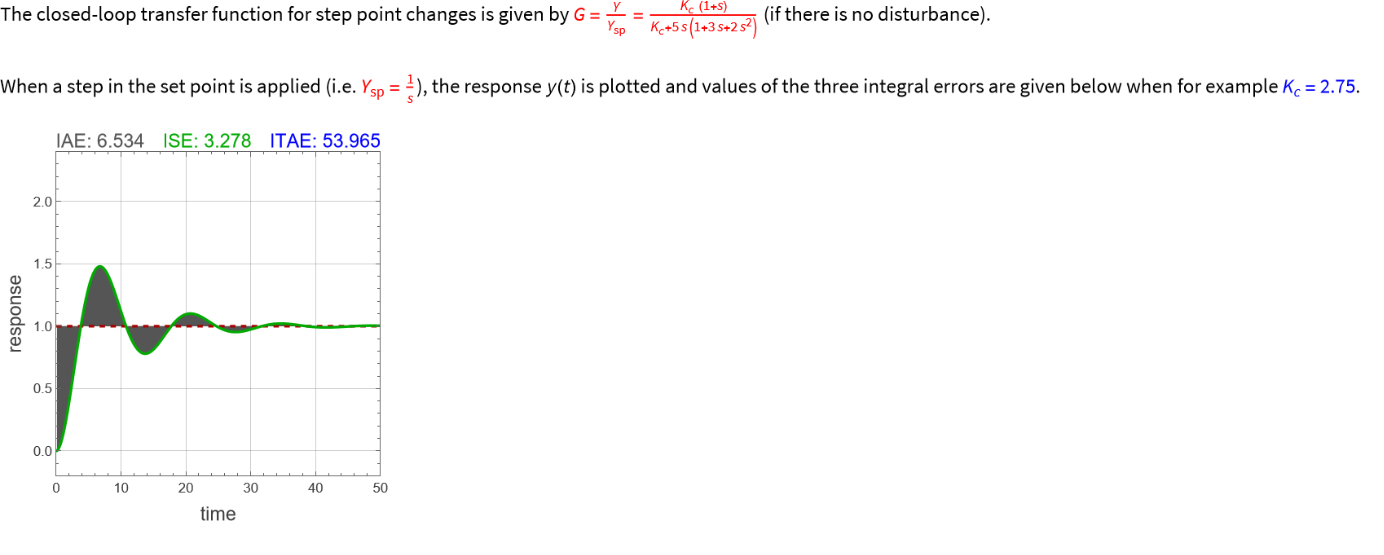

(the integral of the absolute value of the error indicated by the gray area shown in the response versus time plot),​​
ISE=
∞
∫
0
2
(e(t))
dt
(the integral of the squared error),​and ​​
ITAE=
∞
∫
0
te(t)dt
(the integral of the time-weighted absolute error).
​​Closed-looptransferfunctionis
Kc(1+s)
Kc+5s(1+s)(1+2s)
In[]:=
Kc=.
In[]:=
Gp=1/(5s+1);Gv=1/(2s+1);Gm=1/(s+1);Km=1;Gc=Kc(1+1/(5s));
In[]:=
KmGcGvGp/(1+GcGvGpGm)//FullSimplify
Out[]=
Kc(1+s)
Kc+5s(1+s)(1+2s)

Time-domain response

In[]:=
y[q_?NumericQ]:=InverseLaplaceTransform1s
q(1+s)
q+5s(1+3s+2
2
s
)
,s,t//Chop;(*q=Kc*)
In[]:=
ym[q_?NumericQ]:=InverseLaplaceTransform1s
q(1+s)
q+5s(1+3s+2
2
s
)
Gm,s,t//Chop;(*q=Kc*)

Below we compute the three integral errors

In[]:=
f1[q_?NumericQ]:=Re[Quiet@NIntegrate[Abs[1-ym[q]],{t,0,2000},AccuracyGoal->10]//Chop];(*IAE*)​​​​f2[q_?NumericQ]:=Re[Quiet@NIntegrate[(1-ym[q])^2,{t,0,2000},AccuracyGoal->10]//Chop];(*ISE*)​​​​f3[q_?NumericQ]:=Re[Quiet@NIntegrate[tAbs[1-ym[q]],{t,0,2000},AccuracyGoal->10]//Chop];(*ITAE*)​​
In[]:=
Kc=.
In[]:=
IAEdata=Join[Flatten[{{{Kc,IAE}},Table[{q,f1[q]},{q,1,3,0.1}]},1]]
Out[]=
{{Kc,IAE},{1.,6.29076},{1.1,6.09631},{1.2,5.9707},{1.3,5.90318},{1.4,5.84785},{1.5,5.81797},{1.6,5.81315},{1.7,5.82367},{1.8,5.8469},{1.9,5.88281},{2.,5.92813},{2.1,5.98918},{2.2,6.05518},{2.3,6.14005},{2.4,6.21877},{2.5,6.36962},{2.6,6.41802},{2.7,6.52688},{2.8,6.60275},{2.9,6.74772},{3.,6.88155}}
In[]:=
%//TableForm
Out[]//TableForm=
Kc
IAE
1.
6.29076
1.1
6.09631
1.2
5.9707
1.3
5.90318
1.4
5.84785
1.5
5.81797
1.6
5.81315
1.7
5.82367
1.8
5.8469
1.9
5.88281
2.
5.92813
2.1
5.98918
2.2
6.05518
2.3
6.14005
2.4
6.21877
2.5
6.36962
2.6
6.41802
2.7
6.52688
2.8
6.60275
2.9
6.74772
3.
6.88155
In[]:=
ISEdata=Join[Flatten[{{{Kc,ISE}},Table[{q,f2[q]},{q,1,3,0.1}]},1]]
Out[]=
{{Kc,ISE},{1.,4.23077},{1.1,4.03054},{1.2,3.86905},{1.3,3.73759},{1.4,3.62998},{1.5,3.54167},{1.6,3.46928},{1.7,3.41024},{1.8,3.36257},{1.9,3.32472},{2.,3.29545},{2.1,3.27381},{2.2,3.25901},{2.3,3.25042},{2.4,3.24755},{2.5,3.25},{2.6,3.25746},{2.7,3.26968},{2.8,3.28647},{2.9,3.30772},{3.,3.33333}}
In[]:=
%//TableForm
Out[]//TableForm=
Kc
ISE
1.
4.23077
1.1
4.03054
1.2
3.86905
1.3
3.73759
1.4
3.62998
1.5
3.54167
1.6
3.46928
1.7
3.41024
1.8
3.36257
1.9
3.32472
2.
3.29545
2.1
3.27381
2.2
3.25901
2.3
3.25042
2.4
3.24755
2.5
3.25
2.6
3.25746
2.7
3.26968
2.8
3.28647
2.9
3.30772
3.
3.33333
The minimal values of IAE, ISE and ITAE and their corresponding values of q = Kc

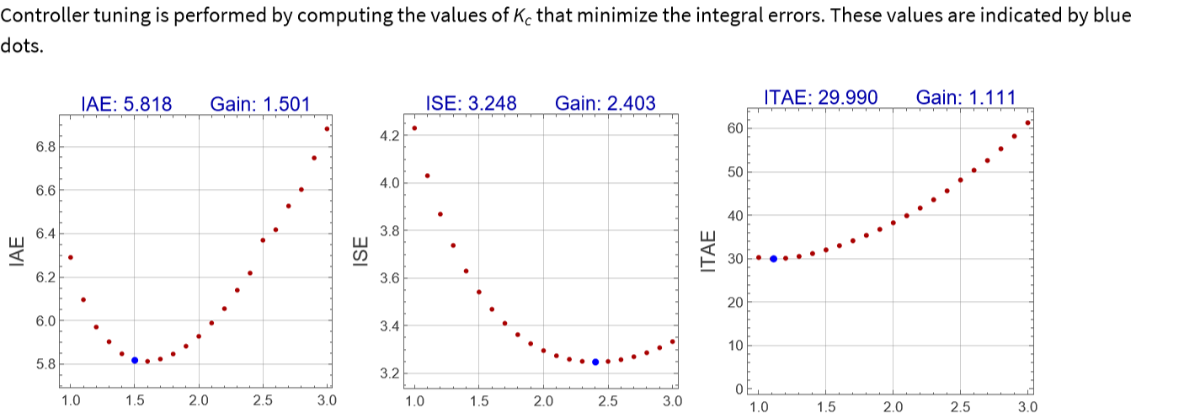

Below we plot the three integral errors and we indicate with a blue dot the optimal values of Kc (the PI controller’s gain)

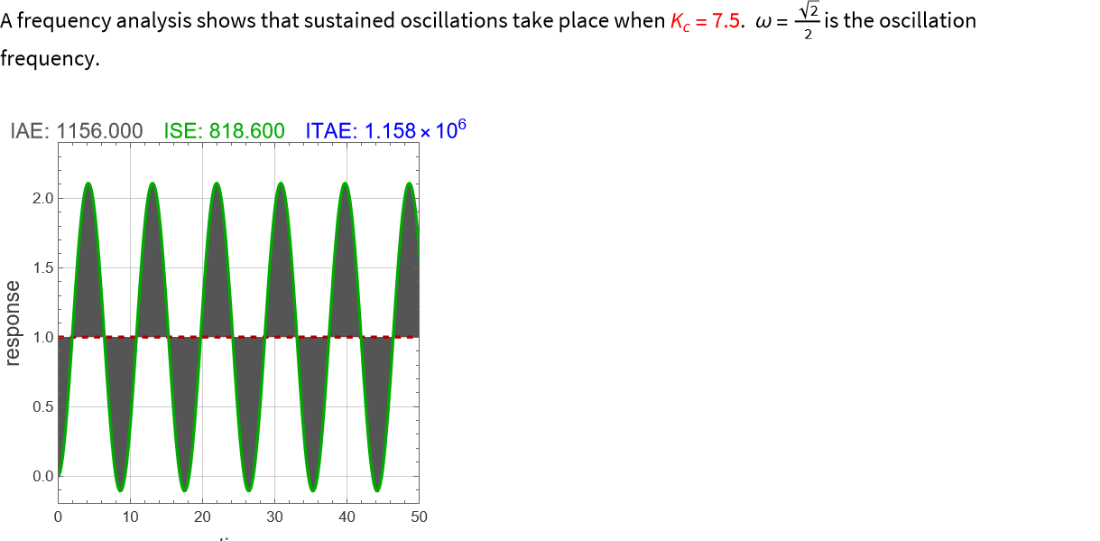

Below we plot the response for Kc=1.25, 2.75 and 7.5

References

[1] D. E. Seborg, T. F. Edgar, D. A. Mellichamp, and F. J. Doyle III, Process Dynamics and Control, 4th ed., Hoboken, NJ: John Wiley & Sons, Inc., 2017.

CITE THIS NOTEBOOK

Integral Error Criteria for Controller Tuning​
by Housam Binous and Ahmed Bellagi
Wolfram Community, STAFF PICKS, March 20, 2024
​https://community.wolfram.com/groups/-/m/t/3144502
