Packing Spheres into a Thin Cylinder

tuberadius

sphereradius

stacking plane angle

sphere opacity

0.6

spheres

The densest packing of spheres with radius

in a cylinder of radius

, where

R≥r

, is a challenging problem. This Demonstration provides the optimal packing for small ratios of

R/r

and upper bounds that show dense packings up to

R/r=3

Details

When

R=r

, the spheres are packed in a straight line. The polygonal line joining the centers zigzags as the tube radius

increases until

R=1/2(2+

, at which point the spheres are stacked in two columns. As

increases, these columns twist into a helix until

R=2r

. Next, the spheres are arranged in parallel sets of two, each set oriented 90° from the previous. These compress, briefly shift to a more dense packing of sets of three, then revert to sets of two until they form four columns of spheres. These columns twist, then switch back to sets of three, briefly interrupted by arrangements of sets of five, and then the sets of three twist until they end forming sets of hexagons at

R=3r

For analytical results derived from numerical optimization up to

R/r=2.873

, see[1], which identified 40 densest arrangements in this range. This Demonstration only shows eight of these structures, which are thus upper bounds for the minimum density.

Varying the opacity of the spheres lets you see the sphere-sphere contacts and sphere-cylinder contacts. Sphere-sphere contacts are drawn in blue, and sphere-cylinder contacts in black. This Demonstration only includes structures where each sphere is in contact with the cylinder, so that there are no internal spheres. Structures above

R/r>2.71486

include internal spheres, while those below do not.

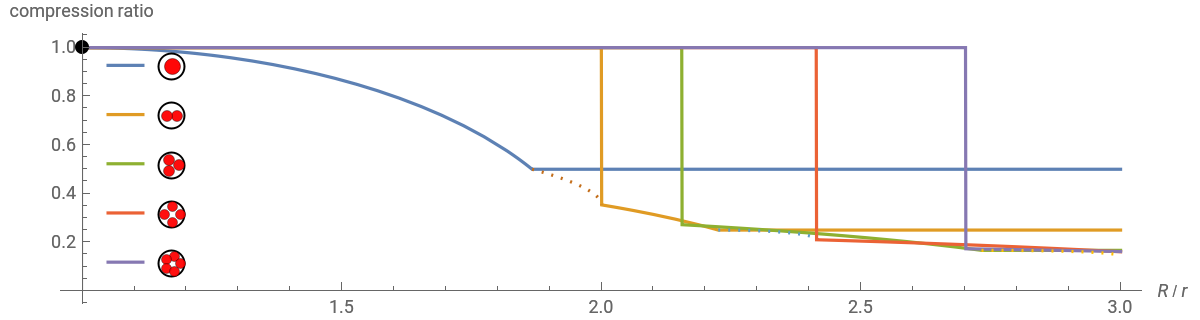

The structure forms regular crystalline structures that are highlighted in the plot and have alternating repeating layers. These layers are:

two at a time at

R/r=2
