A Wolfram Notebook on Hypergraphs
We are glad you are taking a moment to explore the Wolfram Language’s hypergraph capabilities. In this notebook, we’ll start by showing how you can represent and plot hypergraphs, then walk you through two simple algorithms for computing transversal hypergraphs. Get an overview of all the functionalities available in the Wolfram Language in the Wolfram Language & System Documentation Center.
Recall that a hypergraph
H=(V,E)
consists of the set
V
of vertices and the set
E
of hyperedges, each of which is a non-empty subset of those vertices. When it is understood that every vertex lies in at least one hyperedge, then we can let
H
also refer to its set of hyperedges.
Clickinthecode,thenholdandpresstorunit.
Represent a hyperedge as a list of vertices, and a hypergraph as a list of edges and isolated vertices:
In[1]:=
hypergraph={{a,b,c,d},{b,c},{c,d,e},f,g};

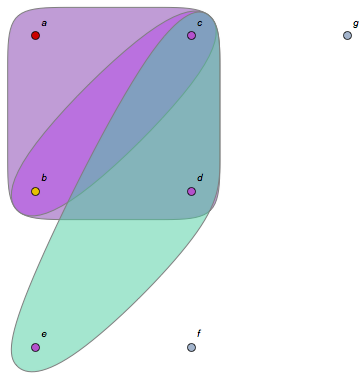

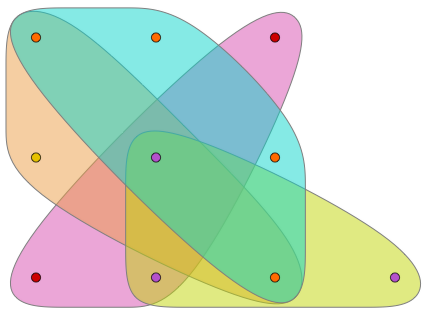

Plot hypergraphs using the built-in function CommunityGraphPlot, which creates a colored region for each hyperedge:
hypergraphPlot[hyp_]:=CommunityGraphPlot[Graph[DeleteDuplicates[Flatten[hyp,1]],{},VertexLabels"Name"],Select[hyp,ListQ],CommunityRegionStyleRandomColor[RGBColor[_,_,_,.5],5]]​​hypergraphPlot[hypergraph]
Out[3]=
A transversal
T
of a hypergraph
H=(V,E)
is a subset
U
of
V
that has a non-empty intersection with each hyperedge in
E
. A minimal transversal is a transversal containing no other transversal as a proper subset. The transversal hypergraph
Tr(H)
of H is the hypergraph
(U,F)
, where
U
is the subset of
V
consisting of all vertices appearing in an edge of
H
, and
F
is the collection of all minimal transversals of
H

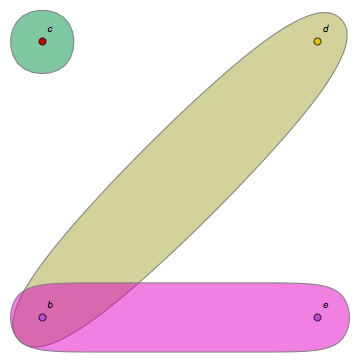

. For instance, the hypergraph below is the transversal hypergraph of the hypergraph above:
hypergraphPlot[{{c},{b,d},{b,e}}]
Out[4]=
Let
min(H)
be the set of minimal hyperedges of
H
(i.e.
min(H)
is obtained from
H
by deleting all isolated vertices as well as any hyperedge that properly contains another hyperedge). Note that
Tr(H)=Tr(min(H))
:
min[hyp_]:=DeleteDuplicates[SortBy[Select[hyp,ListQ],Length],Function[{small,large},SubsetQ[large,small]]]​​min[hypergraph]​​hypergraphPlot[%]
Out[6]=
{{b,c},{c,d,e}}
Out[7]=
Let
H
be a hypergraph, and
H'
be the hypergraph obtained from
H
by adding an extra hyperedge
e
. Note that if
h
is a minimal transversal of
H
and
v∈e
, then
h⋃{v}
either is a minimal transversal of
H'
or contains the minimal transversal
h
of
H'
as a subset. Conversely, any minimal transversal of
H'
is either a minimal transversal of
H
that shares a vertex with
e
, or a minimal transversal of
H
that didn’t already intersect
e
plus any single vertex of
e
. Hence we have the identity
Tr(H')=min({h⋃{v}:h∈Tr(H)∧v∈e})
, which we encode in the function below that takes as input
Tr(H)
and
e
:
extend[trHyp_,edge_]:=min[Map[Composition[DeleteDuplicates,Apply[Append]],Tuples[{trHyp,edge}]]]​​extend[{{b},{c}},{c,d,e}]
Out[9]=
{{c},{b,d},{b,e}}
Berge’s algorithm for computing the transversal hypergraph of
H
simply starts with the empty hypergraph and performs this extension edge by edge of
min(H)
to eventually obtain
Tr(H)
:
transHypBerge[hypergraph_]:=Fold[extend,{{}},min[hypergraph]]​​transHypBerge[hypergraph]​​hypergraphPlot[%]
Out[11]=
{{c},{b,d},{b,e}}
Out[12]=
Unfortunately, Berge’s algorithm isn’t particularly efficient, and doesn’t run very fast on hypergraphs with many vertices:
Berge’s algorithm can be greatly optimized, however, by treating vertices that appear in precisely the same hyperedges of the relevant hypergraph as a single “block” vertex when appropriate. This is the approach of Kavvadias and Stavropoulos.
This partial hypergraph would have the following blocks...
... giving it the following blocked form:
This blocked partial hypergraph would have the following transversal hypergraph...
... and designate the remaining blocks as “split blocks”...
Update the list of blocks:
Perform the same extension used previously in Berge’s algorithm:
Running this algorithm of Kavvadias and Stavropoulos on the hypergraph for which Berge’s algorithm took a bit of time...
... we see that the timing is greatly improved...
... and that we do, in fact, get the same transversal hypergraph (even if the representations might be different):
... and compare the two algorithms’ running times and outputs:
The Wolfram Language has extensive graph theory capabilities, which you can explore here.
