AC Induction Motor Rotor Design

blocked rotor voltage (

E

BR

)

150

rotor resistance (

R

)

0.107

rotor reactance (

X

R

)

0.422

NEMA design

A

B

D

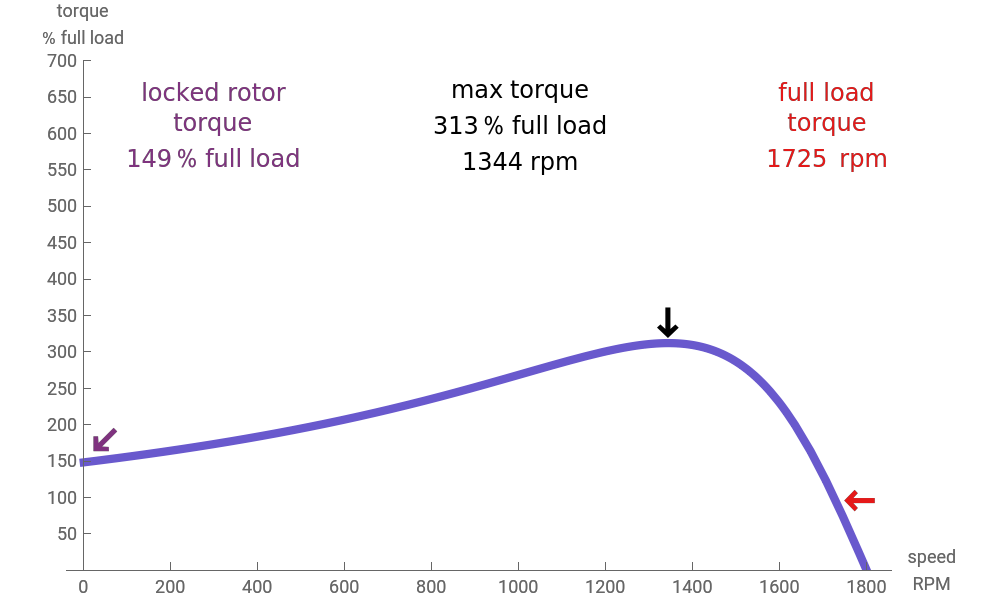

You can adjust the three principal parameters related to induction motor rotor design. Approximate values for three specific NEMA designs are provided by means of buttons.

Details

By adjusting the rotor resistance

(

R

), the rotor reactance

(

X

R

), and the blocked rotor voltage

(

E

BR

), you can observe the interactive effects of the parameters. The buttons provide a quick means of setting the parameters to the approximate NEMA design types of A, B, and D.

Permanent Citation

Harley H. Hartman

"AC Induction Motor Rotor Design" from the Wolfram Demonstrations Project http://demonstrations.wolfram.com/ACInductionMotorRotorDesign/
Published: November 8, 2007
