In[]:=
2+3
Out[]=
5
In[]:=
ClearAll["Global`*"]​​C2=3.*^6;​​T=16.*^-6;​​plist={4096,1024,512,48};​​acquisitionProb[Q_?NumericQ]:=If[Q==1,1.,(1-1./Q)^(Q-1)];​​waitSlots[Q_?NumericQ]:=(1-acquisitionProb[Q])/acquisitionProb[Q];​​efficiency[P_?NumericQ,Q_?NumericQ]:=Module[{W=waitSlots[Q]},(P/C2)/((P/C2)+W*T)];​​fmt[x_]:=NumberForm[x,{4,2}];​​table=Grid[Prepend[Table[With[{Q=q},Prepend[fmt/@(100*efficiency[#,Q]&/@plist),Q](*%*)],{q,{1,2,3,4,5,10,32,64,128,256}}],Prepend[plist,"Q \\ P (bits)"]],Frame->All,Alignment->Center]
Out[]=
Q \ P (bits)
4096
1024
512
48
1
100.00
100.00
100.00
100.00
2
98.84
95.52
91.43
50.00
3
98.56
94.46
89.51
44.44
4
98.42
93.96
88.62
42.19
5
98.34
93.67
88.10
40.96
10
98.18
93.10
87.09
38.74
32
98.07
92.72
86.42
37.37
64
98.05
92.63
86.27
37.08
128
98.04
92.59
86.20
36.93
256
98.03
92.57
86.16
36.86
In[]:=

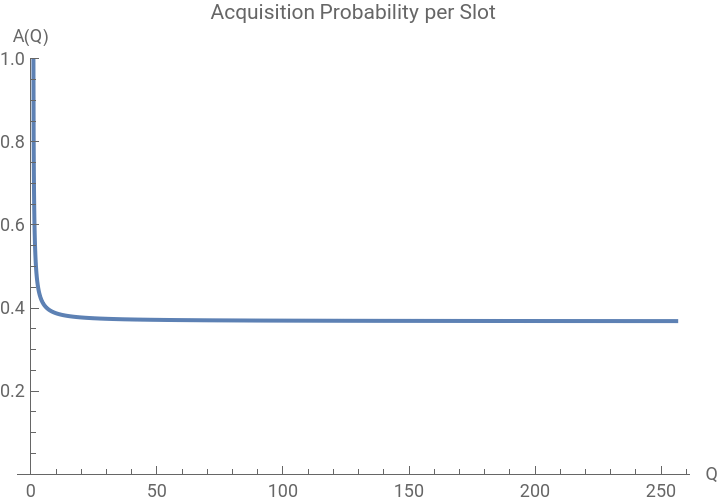

acquisitionProb[Q_?NumericQ]:=If[Q==1,1.,(1-1./Q)^(Q-1)];​​acqPlot=Plot[acquisitionProb[q],{q,1,256},AxesLabel->{"Q","A(Q)"},PlotRange->{0,1},ImageSize->Medium,PlotLabel->"Acquisition Probability per Slot",GridLines->Automatic,PlotStyle->Thick];​​acqPlot
Out[]=
In[]:=

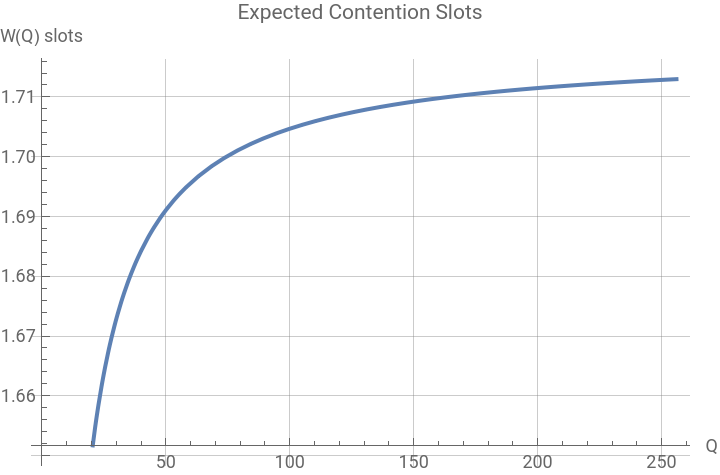

waitSlots[Q_?NumericQ]:=(1-acquisitionProb[Q])/acquisitionProb[Q];​​waitPlot=Plot[waitSlots[q],{q,1,256},AxesLabel->{"Q","W(Q) slots"},ImageSize->Medium,PlotLabel->"Expected Contention Slots",GridLines->Automatic,PlotStyle->Thick];​​waitPlot
Out[]=
In[]:=

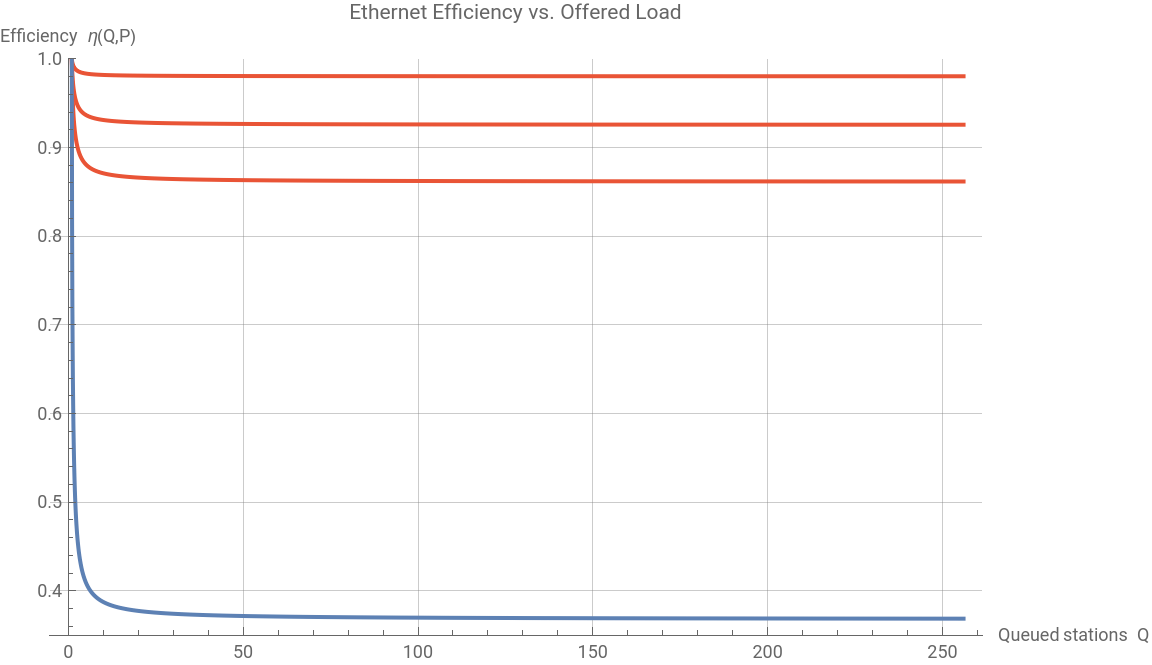

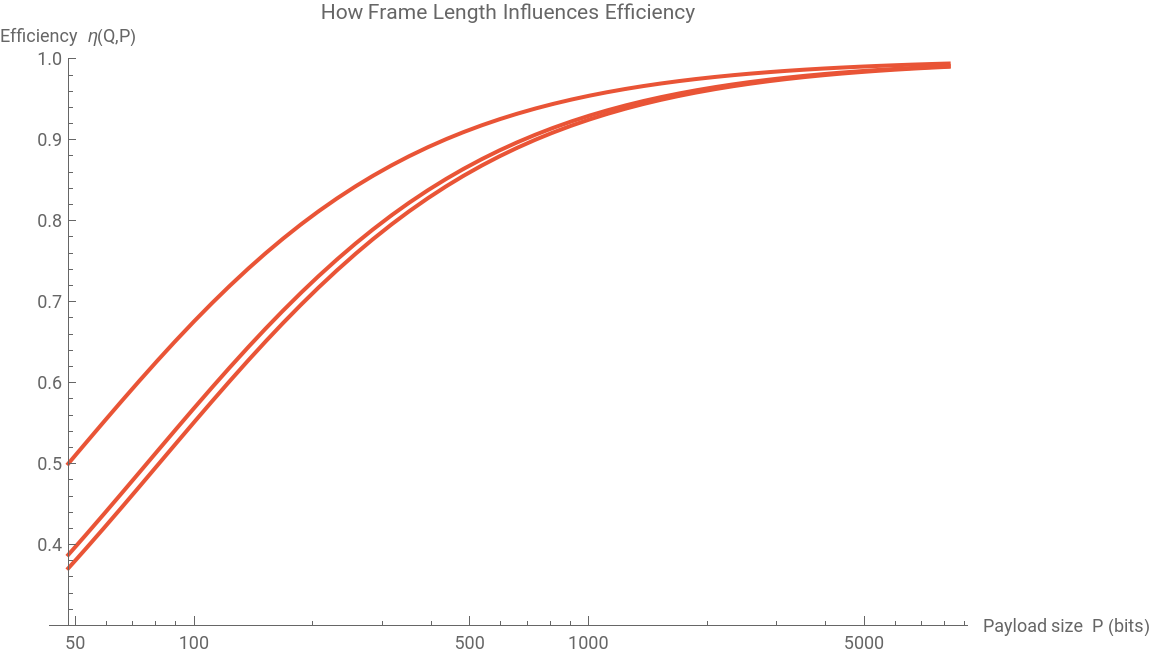

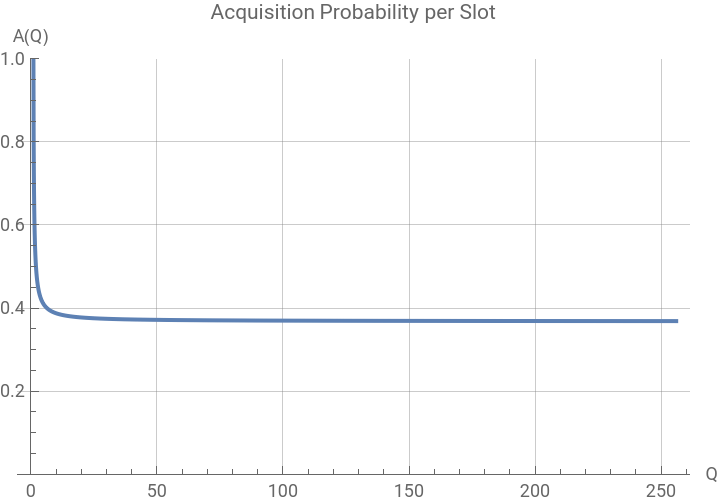

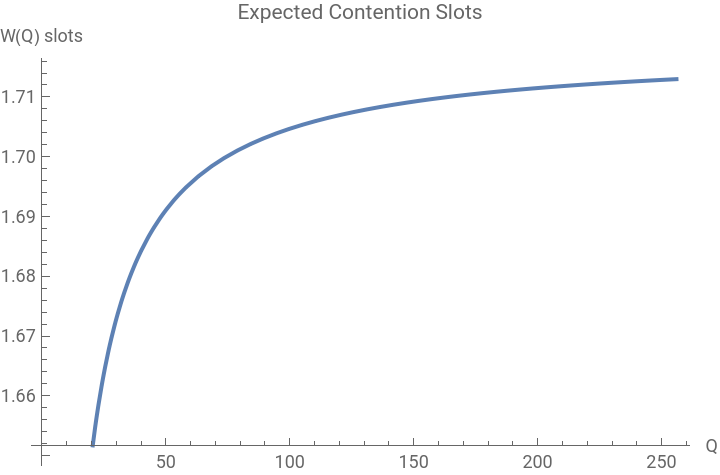

ClearAll["Global`*"];​​channelRate=3.*^6;​​slotTime=16.*^-6;​​acquisitionProb[Q_?NumericQ]:=If[Q==1,1.,(1-1./Q)^(Q-1)];​​waitSlots[Q_?NumericQ]:=(1-acquisitionProb[Q])/acquisitionProb[Q];​​efficiency[P_?NumericQ,Q_?NumericQ]:=Module[{W=waitSlots[Q]},(P/channelRate)/((P/channelRate)+W*slotTime)]​​throughput[P_,Q_]:=channelRate*efficiency[P,Q];​​payloads={4096,1024,512,48};​​palette=ColorData[97]/@Rescale[Range[Length[payloads]]];​​effPlot=Plot[Evaluate@Table[efficiency[p,q],{p,payloads}],{q,1,256},PlotStyle->Thread[{palette,Thick}],PlotLegends->(ToString[#]<>" bits"&/@payloads),AxesLabel->{"Queued stations Q","Efficiency η(Q,P)"},PlotRange->{0.35,1},GridLines->Automatic,ImageSize->Large,PlotLabel->"Ethernet Efficiency vs. Offered Load"];​​effPlot​​qs={2,10,64};​​effPlot2=LogLinearPlot[Evaluate@Table[efficiency[p,q],{q,qs}],{p,48,8192},PlotStyle->Thread[{palette[[;;Length[qs]]],Thick}],PlotLegends->(Style["Q = "<>ToString[#],Bold]&/@qs),AxesLabel->{"Payload size P (bits)","Efficiency η(Q,P)"},PlotRange->{0.3,1},ImageSize->Large,PlotLabel->"How Frame Length Influences Efficiency"];​​effPlot2​​acqPlot=Plot[acquisitionProb[q],{q,1,256},AxesLabel->{"Q","A(Q)"},PlotRange->{0,1},ImageSize->Medium,PlotLabel->"Acquisition Probability per Slot"];​​acqPlot​​waitPlot=Plot[waitSlots[q],{q,1,256},AxesLabel->{"Q","W(Q) slots"},ImageSize->Medium,PlotLabel->"Expected Contention Slots"];​​waitPlot
Out[]=
4096 bits
1024 bits
512 bits
48 bits
Out[]=
Q = 2
Q = 10
Q = 64
Out[]=
Out[]=
