This Demonstration shows plots of the admittance for the Butterworth–Van Dyke electrical circuit, commonly used to model the electro-acoustic admittance of a quartz resonator used in the quartz crystal microbalance (QCM).

Details

This Demonstration plots various representations of the admittance of the Butterworth–Van Dyke electrical circuit, commonly utilized to model the electro-acoustic behavior of a quartz resonator used in quartz crystal microbalance (QCM). The top branch of the electrical circuit is called the acoustic branch while the bottom branch is called the electrical branch.
The admittance
Y(ω)
can be written:
Y(ω)=iω(C/(1+Ciω(Liω+R)+
C
0
))
,
where
f
is the frequency and
ω=2πf
.
The reduced admittance
*
Y
(u)=RY(u)
is then:
*
Y
(u)=Λiu1+Λiu+
2
(iu)
+γiu
with
u=ω
LC
, the reduced frequency,
Λ=R
C/L
,
γ=R
C
0

LC
.

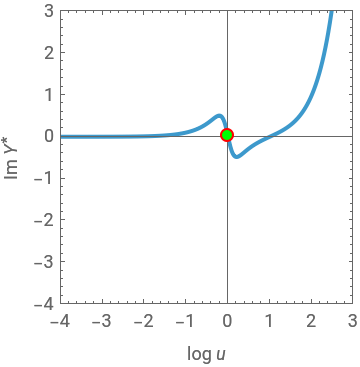

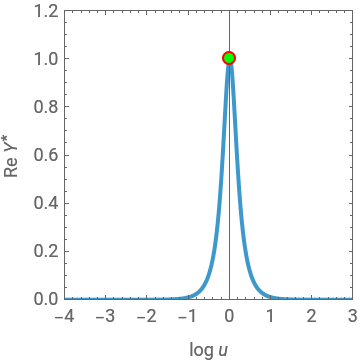

The expressions of the real and the imaginary parts of the admittance are:
Re
*
Y
(u)=
2
u
2
Λ
/(1+
4
u
+
2
u
(
2
Λ
-2))
and
Im
*
Y
(u)=γu+uΛ(1-
2
u
)/(1+
4
u
+
2
u
(
2
Λ
-2))
.
The resonance of the quartz crystal is reached when the reduced frequency
u
r
=1⇒Re
*
Y
(
u
r
)=1
,
Im
*
Y
(
u
r
)=γ
,
f
r
=1(2π
LC
)
.
The green dots represent the reduced resonance frequency.
