My answer
My answer
In[]:=
Clear["Global`*"]
In[]:=

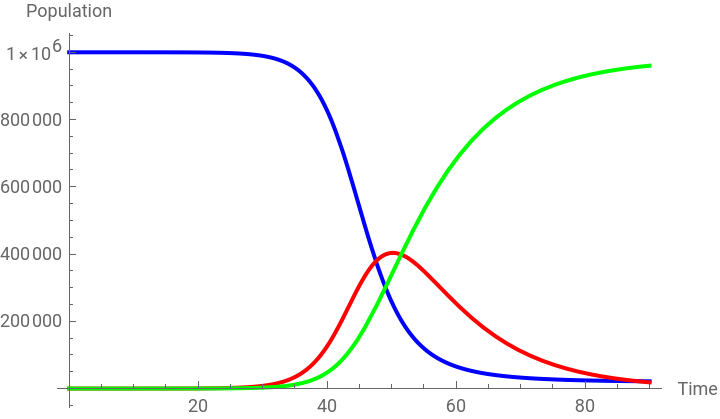

(*Recoveryrate*)γ=0.1;(*infectionrate*)β=0.4;tMax=90;n=10^6;(*FoI*)λ[t_]=βi[t]/n;(*Definethesystemofdifferentialequations*)eqns={s'[t]==-λ[t]*s[t],i'[t]==λ[t]*s[t]-γ*i[t],r'[t]==γ*i[t],s[0]==999999,i[0]==1,r[0]==0};(*Solvethesystem*)sol=NDSolve[eqns,{s,i,r},{t,0,tMax}];(*Plotthesolutions*)Plot[Evaluate[{s[t],i[t],r[t]}/.sol],{t,0,tMax},PlotLegends->{"Susceptible","Infected","Recovered"},AxesLabel->{"Time","Population"},PlotStyle->{Blue,Red,Green}]
Out[]=
In[]:=
Reff[t_]=(β/γ)*(s[t]/n)
Out[]=
4.×s[t]
-6
10
In[]:=

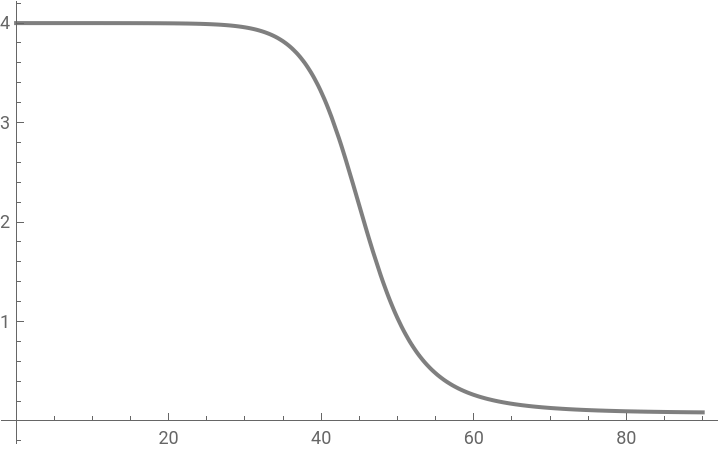

Plot[Reff[t]/.sol,{t,0,90},PlotStyle->Gray]
Out[]=
In[]:=
inc[tmax_]:=NIntegrate[{λ[t]*s[t]}/.sol,{t,0,tmax}]
In[]:=

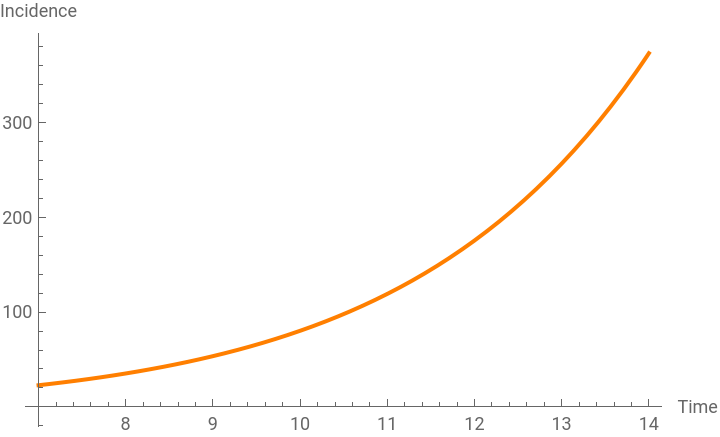

Plot[inc[t],{t,7,14},AxesLabel->{"Time","Incidence"},PlotStyle->Orange]
Out[]=
In[]:=
inc[14]-inc[7]/.sol
Out[]=
{{{78.018}}}
colleague answer
colleague answer
In[]:=
Clear["Global`*"];
In[]:=

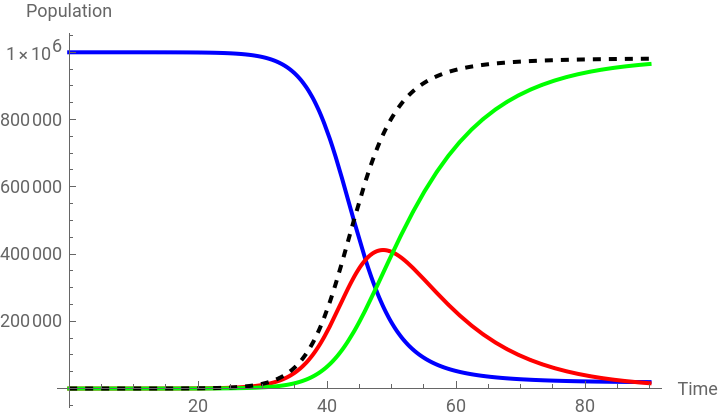

γ=0.1;β=0.41;tMax=90;n=10^6;λ[t]:=βi[t]/n;eqns={s'[t]==-λ[t]s[t],i'[t]==λ[t]s[t]-γ*i[t],r'[t]==γ*i[t],incident'[t]==λ[t]*s[t],s[0]==999999,i[0]==1,r[0]==0,incident[0]==0};sol=NDSolve[eqns,{s,i,r,incident},{t,0,tMax}];Plot[Evaluate[{s[t],i[t],r[t],incident[t]}/.sol],{t,0,tMax},PlotLegends->{"Susceptible","Infected","Recovered","Incidence"},AxesLabel->{"Time","Population"},PlotStyle->{Blue,Red,Green,Directive@{Black,Dashed}}]
Out[]=
In[]:=
incident[14]-incident[7]/.sol
Out[]=
{89.8569}
