Chart for a Torus

​
Torus  Plane
2.
θ
ϕ
A torus (more precisely, a 2-torus) has the shape of the outer surface of a donut. A torus can be parametrized by two angular variables
(θ,ϕ)
, each in
[0,2π)
. A dissected torus can be pictured as equivalent to a rectangle in the two-dimensional Euclidean plane
2

, with opposite pairs of edges glued together. Locally, the 2-torus resembles
2

, but there is no global continuous mapping since the Euclidean plane extends to infinity. This Demonstration shows possible mappings from a 2-torus to
2

. The operation necessarily introduces discontinuities, where small changes of
θ
or
ϕ

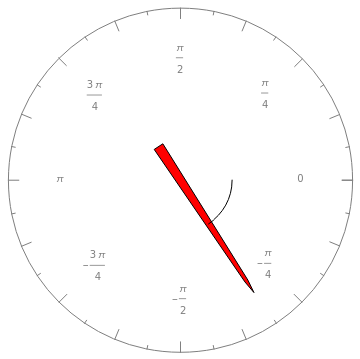

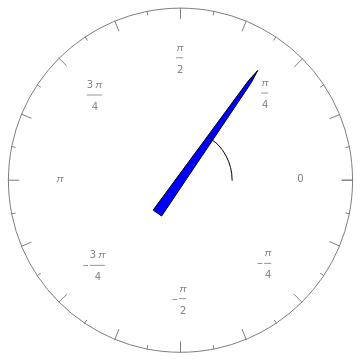

create large jumps in the planar configuration. Two rotary dials determine a point
(θ,ϕ)
(highlighted in green) in the course of a transformation.

Details

The 2-torus (or
2
T
) is a manifold that can be embedded in
3

, as illustrated by the 3D plot. A manifold is a topological space that locally resembles
n
-dimensional Euclidean space
n

in a neighborhood of each point. Locally, the neighborhood of any point on
2
T
resembles one in
2

(the Euclidean plane).
Globally, a manifold can differ from a Euclidean space; for example, the surface of the sphere
2
S
is not topologically equivalent to a Euclidean space. Likewise the surface of a torus. As shown in this Demonstration, the torus can be split along its longest circumference to form a cylinder, and then this cylinder can be opened up into a rectangle. Both operations introduce discontinuities where small changes of
θ
or
ϕ
create large jumps in the configuration.
In the context of manifolds, these mappings are called charts. To avoid discontinuities, you can switch from one chart to another, much like a pilot can switch from a map of North America to a map of the Pacific when flying from New York to Tokyo. A collection of overlapping charts is called an atlas.
A fun problem: what is the minimum number of charts needed to construct a complete atlas of the torus?
