Gabor patch visibility in CPD using fourier analysis - @binocularity Feb 2024
https://cdn.sinauer.com/wolfe4e/wa03.03.html
https://mathematica.stackexchange.com/questions/88168/averaging-over-a-circle-from-fft-to-plot-the-amplitude-vs-wavelength
https://mathematica.stackexchange.com/questions/87214/calculation-of-2d-fft-for-an-image/87240#87240
https://cdn.sinauer.com/wolfe4e/wa03.03.html
https://mathematica.stackexchange.com/questions/88168/averaging-over-a-circle-from-fft-to-plot-the-amplitude-vs-wavelength
https://mathematica.stackexchange.com/questions/87214/calculation-of-2d-fft-for-an-image/87240#87240
In[]:=
SetDirectory[NotebookDirectory[]];(*Constants*)maxBinormal=Max[Table[PDF[BinormalDistribution[0.0],{x,y}],{x,-Pi,Pi},{y,-Pi,Pi}]];scaleBinormal=1/maxBinormal;
In[]:=
(*Functions*)gaborFunction[f_,x_,y_,vector_,contrast_]:=Module[{vec=Normalize[vector],c=Clip[contrast,{0,1}],u,v},u=vec[[1]];v=vec[[2]];c*Sin[fxu+fyv]*(scaleBinormal*PDF[BinormalDistribution[0.0],{x,y}])]gaborPatch2D[f_,vector_,contrast_,res_]:=Module[{},Rasterize[DensityPlot[((gaborFunction[f,x,y,vector,contrast])+1)/2,{x,-Pi,Pi},{y,-Pi,Pi},MaxRecursion->1,ColorFunction->GrayLevel,ColorFunctionScaling->False,Frame->False,PlotPoints->res,PlotRangePadding->0,PlotRange->All],ImageSize->res/2,RasterSize->res]]
In[]:=
contrast=1;frequency=10;vector={1.0,0.0};resolution=260;img=gaborPatch2D[frequency,vector,contrast,resolution]
Out[]=
In[]:=
(*Fourieranalysistocalculatefrequencypowerspectrum*)imgRaw=ImageData[RemoveAlphaChannel[ColorConvert[img,"GrayScale"]]];imDat={imgRaw};ftImg=Fourier[imDat[[1]]];absFtImg=Abs[ftImg];fft1=RotateLeft[absFtImg,Floor[Dimensions[absFtImg]/2]];Image[fft1,ImageSize->resolution/2]
Out[]=
In[]:=
radius=resolution/2;fftPolar=ImageTransformation[Image[Abs[fft1]],{Cos[#[[1]]],Sin[#[[1]]]}#[[2]]&,Round[{π*radius,radius}],PlotRange->{{0,2π},{0,1}},DataRange->{{-1,1},{-1,1}}]
Out[]=
In[]:=
(*ListPlot[Mean/@ImageData[fftPolar,DataReversed->True],DataRange->{0,radius},Joined->True,PlotRange->{Automatic,{0,10}}]*)
In[]:=

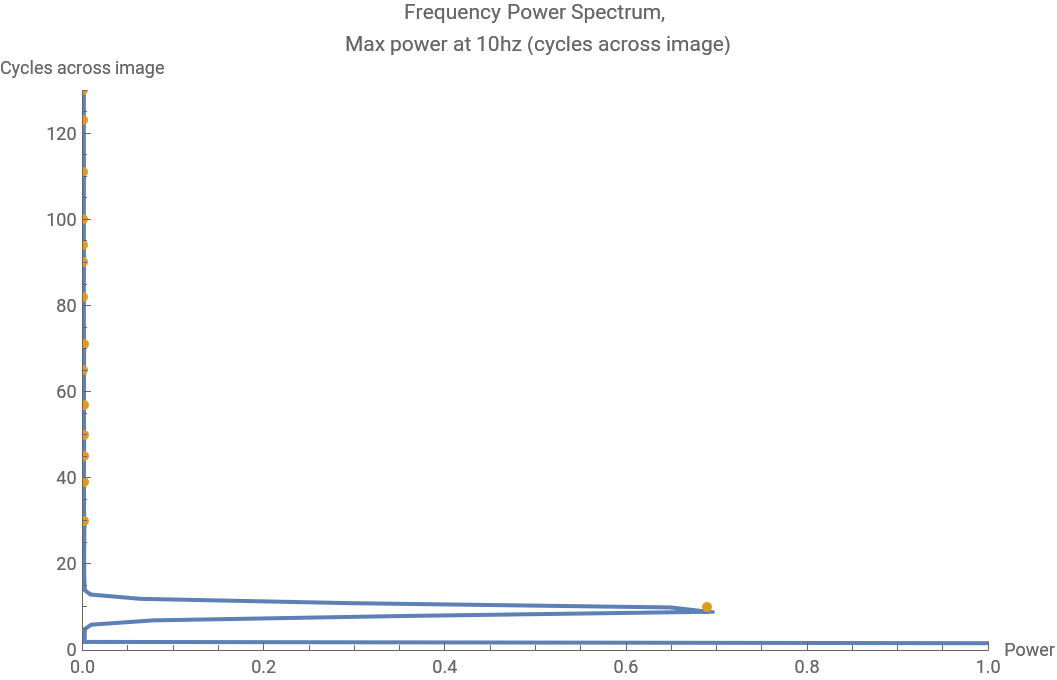

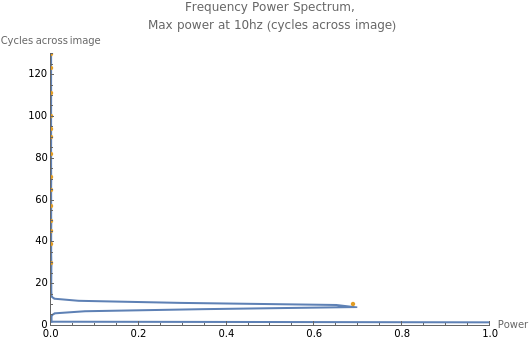

x=Mean/@ImageData[fftPolar,DataReversed->True];peaks=FindPeaks[x];peaks=Reverse[#]&/@peaks;(*Selectpeaksover1hz(notDC)andwithnon-negligablepower*)keyPeaks=Select[peaks,(#[[2]]>1&&#[[1]]>1/130)&];powerMax=Max[keyPeaks[[All,1]]];plotMax=Ceiling[powerMax];freqMax=Select[keyPeaks,(#[[1]]>=powerMax)&][[1]][[2]];y=Range[0,radius-1,1];freqPowerSpectrum=Partition[Riffle[x,y],2];ListPlot[{freqPowerSpectrum,peaks},PlotStyle->{Automatic,PointSize[0.01]},Joined->{True,False},PlotRange->{{0,plotMax},{0,130}},AxesLabel->{"Power","Cycles across image"},PlotLabel->StringJoin["Frequency Power Spectrum,\n Max power at ",ToString[freqMax],"hz (cycles across image)"]]
Out[]=
In[]:=
What is freqMax in CPD (cycles per degree of visual angle)?
It depends on the display, assume we have:
14inch HD (1920x1080 pixels, 16:9 aspect ratio) laptop display viewed from 300mm
displaying a 260x260 Gabor patch with no magnification factor
14inch is 35.56cm diagonal display or 31cmx17.4cm dimensions
This is a pixel pitch of 0.162mm or a dpi of 157 https://pixelcalculator.com/en
Working in mm
It depends on the display, assume we have:
14inch HD (1920x1080 pixels, 16:9 aspect ratio) laptop display viewed from 300mm
displaying a 260x260 Gabor patch with no magnification factor
14inch is 35.56cm diagonal display or 31cmx17.4cm dimensions
This is a pixel pitch of 0.162mm or a dpi of 157 https://pixelcalculator.com/en
Working in mm
In[]:=
viewingDistance=300;displayDiagonal=14*25.4;displayWidth=displayDiagonal/Sqrt[16^2+9^2]*16;displayPixelPitch=displayWidth/1920
Out[]=
0.161423
In[]:=
gaborPatchSize=resolution*displayPixelPitch
Out[]=
41.97
In[]:=
visualAngle=ArcTan[(gaborPatchSize/2)/viewingDistance]/Degree
Out[]=
4.00132
In[]:=
CPD=freqMax/visualAngle
Out[]=
2.49917
Typical limit of CPD for human vision at high contrast is 10 cpd.
