A 3D STL printable file is generated for this animation device for showing the Sun’s corona during one rotation. The A171 Angstrom images are downloaded to show the Sun quiet corona and transition region for plasma at about 600,000K.
There 12 images space 48 hrs apart and hence one rotation of the praxinoscope is about one solar day. The actual solar rotation period depends the solar latitude.
The 12 mirrors need to be cut and placed on the center column. The praxinoscope can be placed on a vinyl record player turntable to allow it turn.
Twelve SDO/ AIA 171A Solar Images ever other day starting at 12-14-2025 (Full size image attached in the comments to be used in the code)
Note: These images need to be reflected since the will be seen via mirrors.

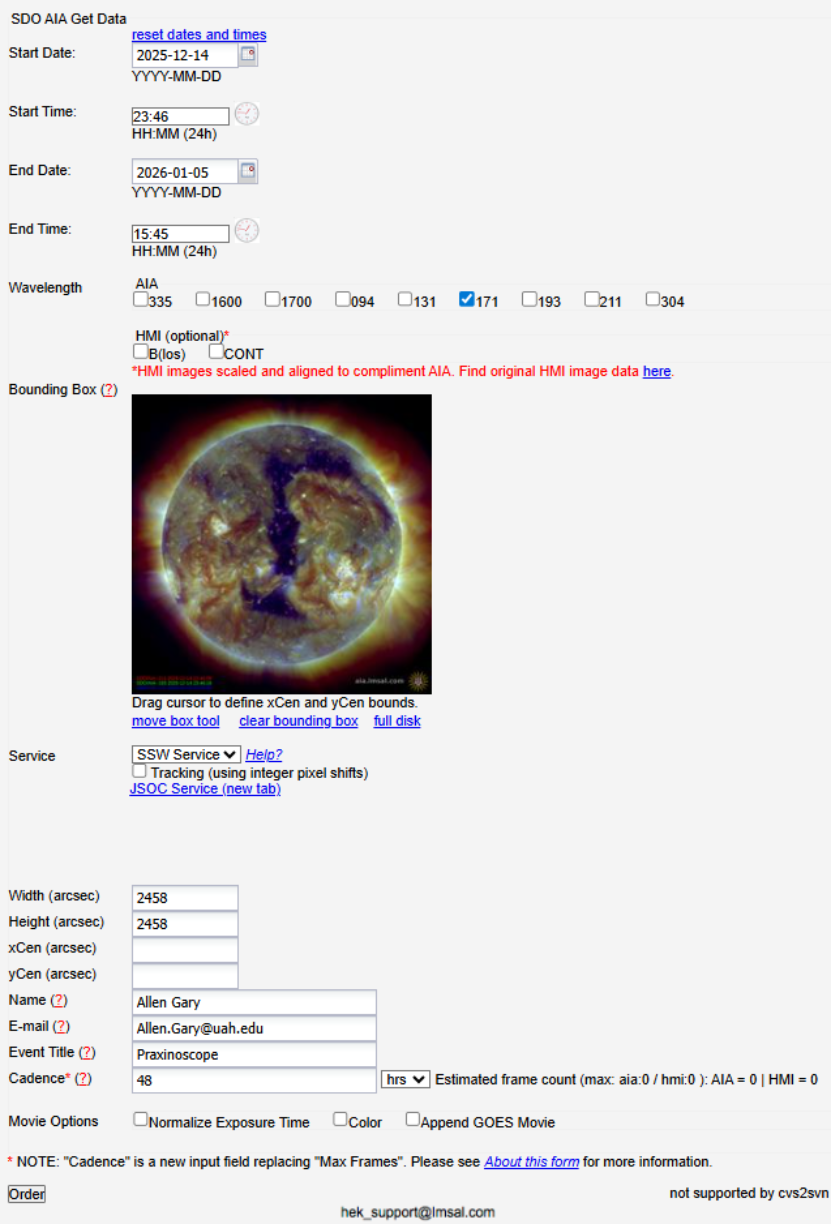

Using the above data form one can request A171 data from Atmospheric Imaging Assembly (AIA) for the Solar Dynamics Observatory (SDO) software date base at Lockheed Martin Solar and Astrophysics Laboratory, LMSAL ( https://www.lmsal.com/get_aia_data/ )

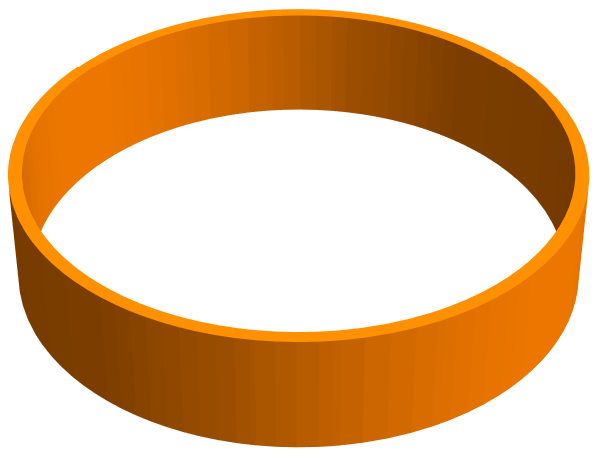

Forming the outer frame of the device
In[]:=
outercylinder=RegionDifference[Cylinder[{{0,0,0},{0,0,4.6}},10.5],​​Cylinder[{{0,0,0},{0,0,4.6}},10]];​​gouter=Show[Region[Style[outercylinder,Orange]]]
Saving the outer frame as a 3D printable file
In[]:=
Export["C:\\Users\\gag00\\OneDrive\\Desktop\\outerpart.stl",gouter]
In[]:=
basecylinder=RegionDifference[Cylinder[{{0,0,0},{0,0,0.25}},10.5],​​Cylinder[{{0,0,0},{0,0,0.25}},0.25]];

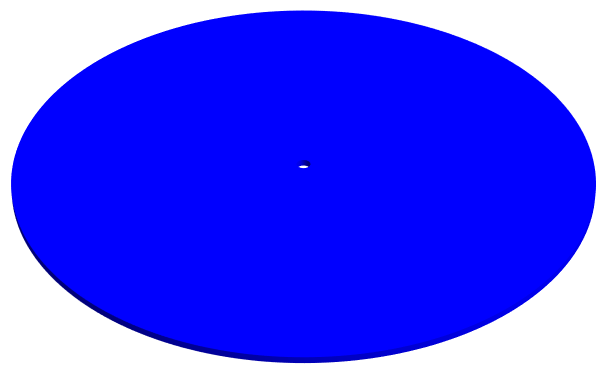

The base of the device
In[]:=
gbase=Show[Region[Style[basecylinder,Blue]]]
Saving the base as a 3D printable file
In[]:=
Export["C:\\Users\\gag00\\OneDrive\\Desktop\\gbase.stl",gbase]

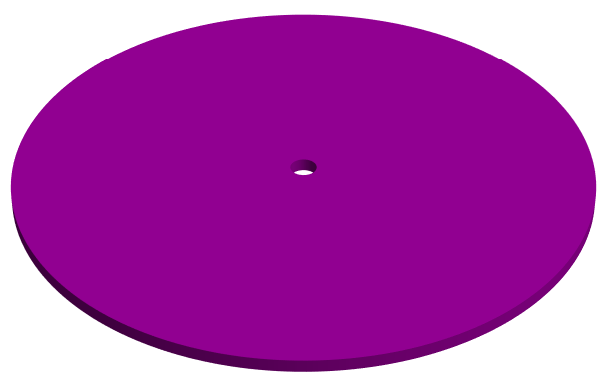

Forming the top cylinder of the device
In[]:=
topcylinder=RegionDifference[Cylinder[{{0,0,5},{0,0,5.25}},5.5],​​Cylinder[{{0,0,5},{0,0,5.25}},0.25]];
gtop=Show[Region[Style[topcylinder,Purple]]]
Saving the top cylinder as a 3D printable file
In[]:=
Export["C:\\Users\\gag00\\OneDrive\\Desktop\\toppart.stl",gtop]
In[]:=
ℛ=RegionProduct[RegularPolygon[5,12],Line[{{0},{5}}]];​​RwithHole=RegionDifference[ℛ,Cylinder[{{0,0,0},{0,0,5}},0.25]];​​reg=Region[RwithHole];​​showit=Show[reg]

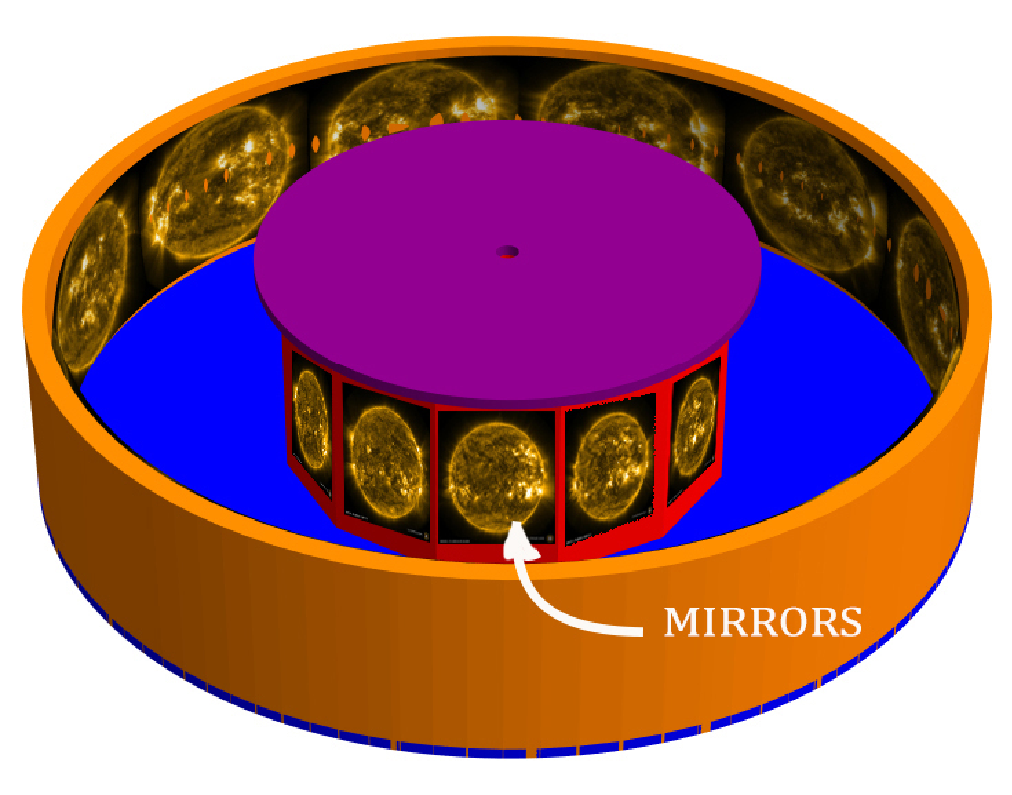

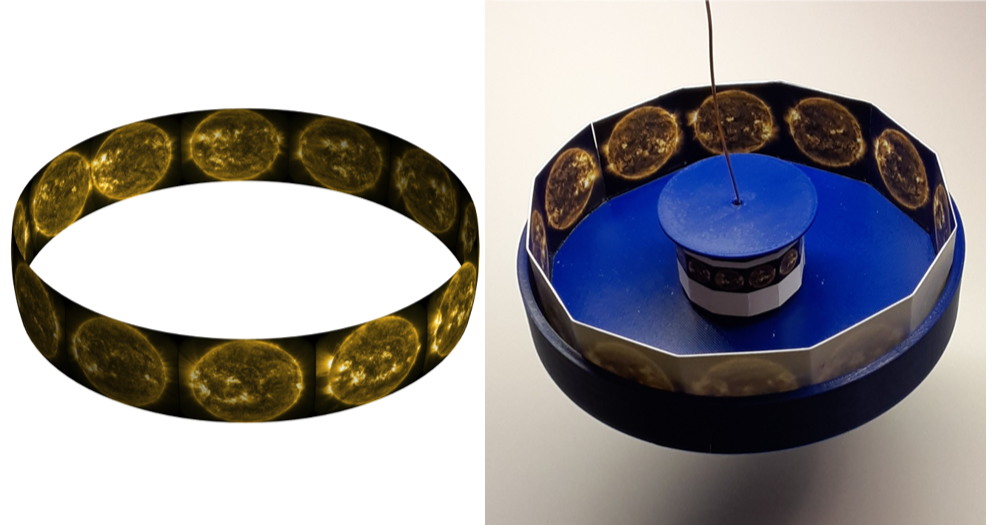

The 3D printable model:
Mirrors are not shown :

References

https://en.wikipedia.org/wiki/Praxinoscope​
​https://physics.kenyon.edu/EarlyApparatus/Optical_Recreations/Praxinoscopes/Praxinoscopes.html​
​https://www.thingiverse.com/thing:4817279​
​https://graphicarts.princeton.edu/2013/10/29/praxinoscope/​
​https://sdowww.lmsal.com/suntoday_v2/
Using this data form to request A171 data
https://www.lmsal.com/get_aia_data/
https://sdowww.lmsal.com/sdomedia/ssw/media/ssw/ssw_client/data/ssw_service_260106_101634_24790/www/ssw_cutout_20251214_234610_AIA_171__20251214_234609_m.mp4
Mirrors from crafts store, e.g, Hobby Lobby (for example)
​https://www.hobbylobby.com/crafts-hobbies/glass-crafting/mirrors/square-craft-mirrors---1/p/22805?gad_source=1&gad_campaignid=21086060082&gbraid=0AAAAAC-IqNz6wMmACPiGRqfZKFiAonW52&gclid=Cj0KCQiAgvPKBhCxARIsAOlK_EogptQyTJFyI21_rHhd70IhT4WZWU3fmAYuvEW2rKFJILNGqGOnsggaAmQ5EALw_wcB
Then use the free STL fixer-upper to clean .... if needed
​https://www.formware.co/onlinestlrepair

CITE THIS NOTEBOOK

Reviving the Praxinoscope: visualizing solar dynamics in 3D​
by Gilmer Gary​
Wolfram Community, STAFF PICKS, January 7, 2026
​https://community.wolfram.com/groups/-/m/t/3602464
