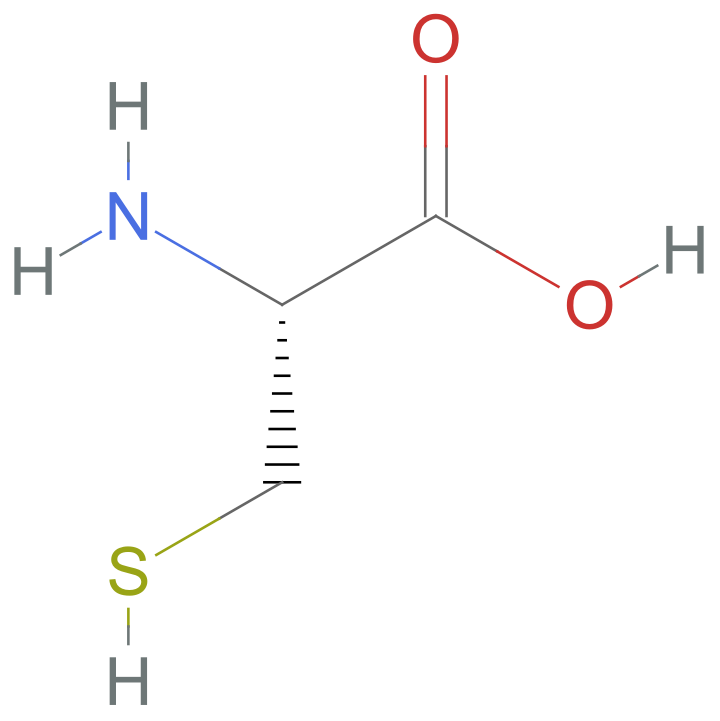

We can easily get an amino acid and see its molecule in 2D or 3D
In[]:=
MoleculeName[#],MoleculePlot#,,MoleculePlot3D#,&/@RandomChoiceEntityList,1//Grid
Out[]=
(2R)-2-amino-3-sulfanylpropanoic acid |  |
We can define a pattern and highlight it. Let’s show the amino and carboxylic acid.
In[]:=
With{amino=Molecule[{"N","H","H"},{Bond[{1,2},"Single"],Bond[{1,3},"Single"]}],carboxylicacid=Molecule[{"C","O","O","H"},{Bond[{1,2},"Double"],Bond[{1,3},"Single"],Bond[{3,4},"Single"]}]},MoleculePlot#1,Association["amino"amino,"carboxylic acid"carboxylicacid],,,MoleculePlot3D#1,Association["amino"amino,"carboxylic acid"carboxylicacid],&/@//
|
We can define the peptide bond and bond two amino acids.
(Except for proline and glutamine. These are “special”).
(Except for proline and glutamine. These are “special”).
Out[]=
,,,,,,,,,,,,,,,,,
In[]:=
WithpeptideBond=MoleculePattern{"C","O","N","H",Atom[Except["H"]]},,nhhcooh=MoleculePattern{"N","H","H","C","O","O","H"},,peptide=MoleculePattern{"N","H","H","C","O","N","H","C","O","O","H"},,water=MoleculePattern{"H","H","O"},,proteinSynthesis=PatternReaction{nhhcooh,nhhcooh}->{peptide,water},;MoleculePlotApplyReactionproteinSynthesis,,1,,peptideBond,
Out[]=

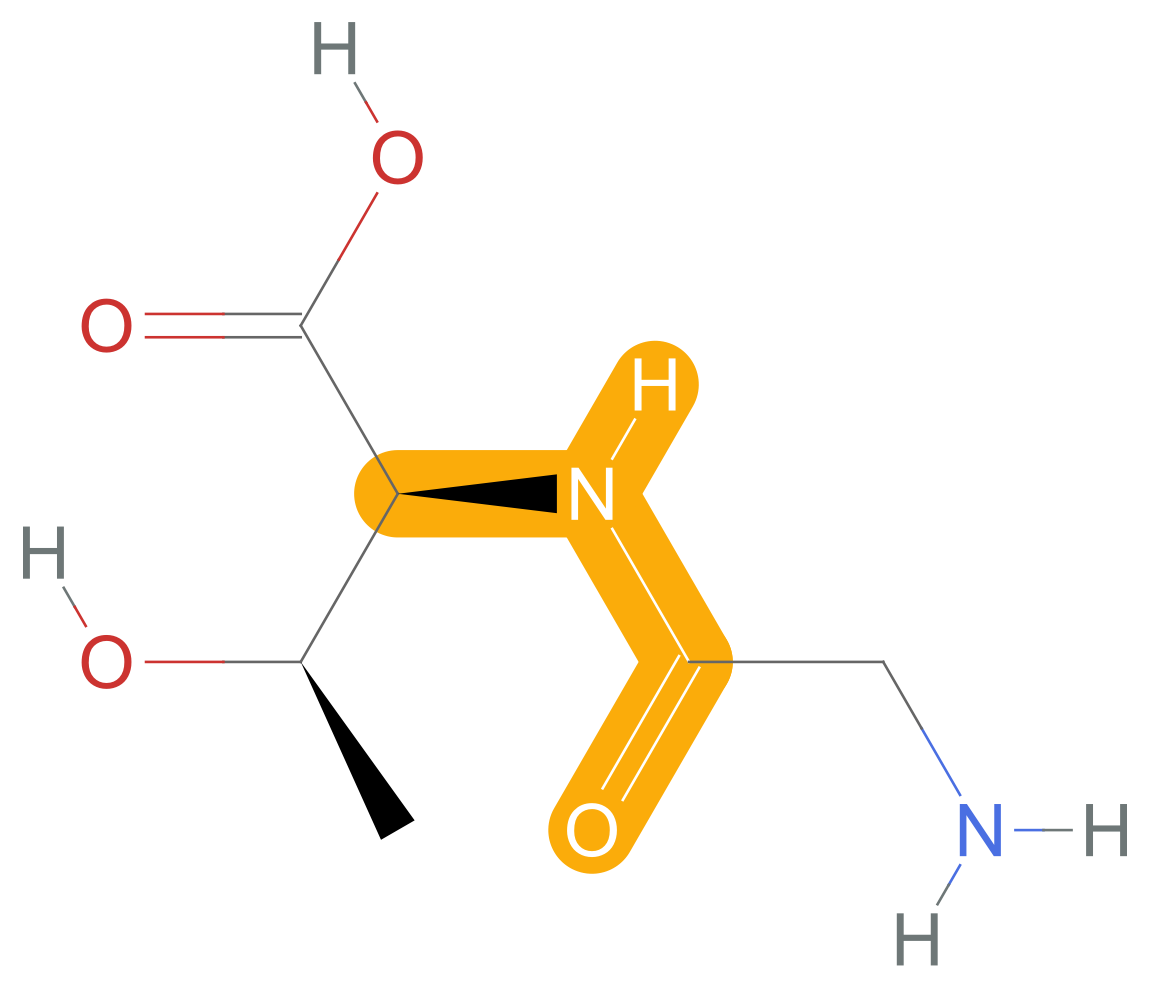

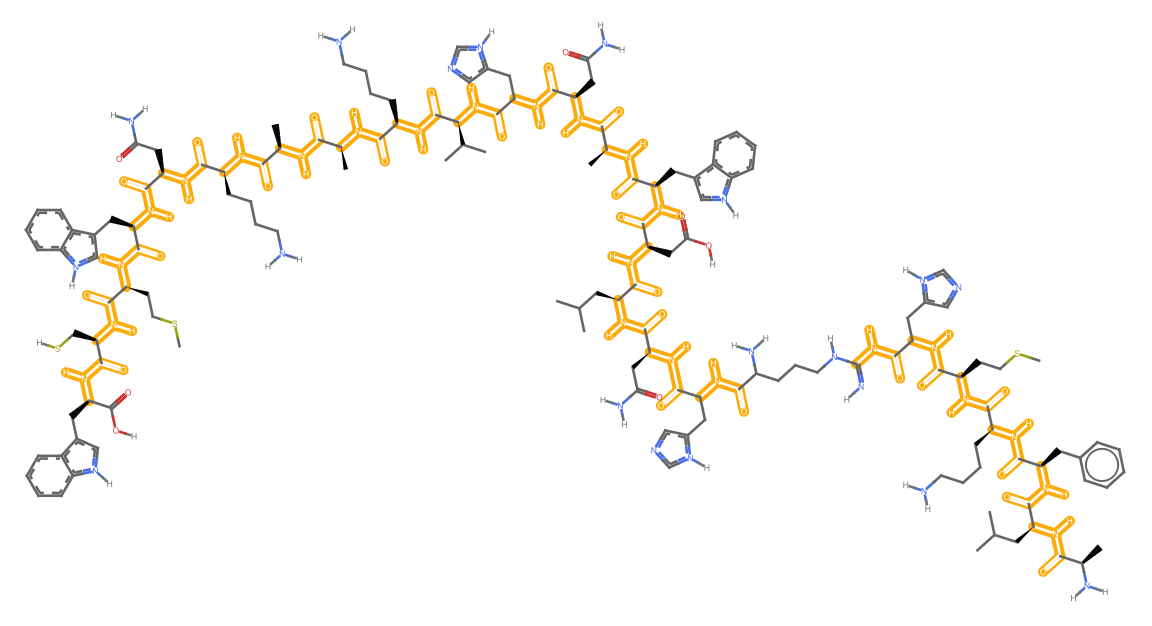

Now that we have defined the reaction for peptide bind formation, we can chain amino acids together into a polypeptide.
In[]:=
