ABSTRACT (original article): Asphaltenes are organic compounds that aggregate in crude oil with two dominant molecular architectures: archipelago and continental. Continental architectures possess a single uniform island structure composed of aromatic rings in contrast to archipelago architectures with aromatic cores interconnected through aliphatic chains. The structural composition of asphaltenes varies globally due to geographical differences, posing challenges in their classification due to a lack of uniformity. This study is the first known exploration of using image-based supervised machine learning, particularly the ResNet-50 neural network, for the binary classification of asphaltenes into continental and archipelago motifs. 255 continental and archipelago models underwent structural augmentations to create a sample size of 1,530 asphaltene structures that is robust enough for accurate results in both the training and testing portions of the machine learning. These augmentations included the repeated addition of carbons until a complete pentane chain was added to a specified carbon on each asphaltene structure. Using Mathematica, supervised ResNet-50 image-based classification was used on both original and augmented structure datasets to classify as either archipelago or continental. The classification was also implemented using topological similarity searching for association between atoms and the distance between them for further molecule identification. This study demonstrates the surprising effectiveness of image-based classification compared to traditional topological feature-based methods. Our results reveal that deep learning techniques, especially image-based approaches, provide novel and insightful ways to differentiate complex molecular structures like asphaltenes, challenging the traditional reliance on topological features alone. This research opens new avenues in chemical analysis and molecular characterization, highlighting the potential of machine learning in complex molecular systems. CITATION (original article): Arun K. Sharma, Selsela Arsala, James Brady, Madison Franke, Shelby Franke, Supreet Gandhok, Simon-Olivier Gingras, Ana Gomez, Katelyn Huie, Kayla Katz, Samantha Kozlo, Mateo Longoria, Levi Molnar, Nathaly Peña, Sarina Regis, Machine learning to identify structural motifs in asphaltenes, Results in Chemistry, 7, 2024, 101551, https://doi.org/10.1016/j.rechem.2024.101551.

Introduction

Asphaltenes are organic compounds that aggregate in crude oil with two dominant molecular architectures : archipelago and continental. Continental architectures possess a single uniform island structure composed of aromatic rings in contrast to archipelago architectures with aromatic cores interconnected through aliphatic chains. The structural composition of asphaltenes varies globally due to geographical differences, posing challenges in their classification due to a lack of uniformity. This study is the first known exploration of using image - based supervised machine learning, particularly the ResNet - 50 neural network, for the binary classification of asphaltenes into continental and archipelago motifs. 255 continental and archipelago models underwent structural augmentations to create a sample size of 1, 530 asphaltene structures that is robust enough for accurate results in both the training and testing portions of the machine learning. These augmentations included the repeated addition of carbons until a complete pentane chain was added to a specified carbon on each asphaltene structure. Using Mathematica, supervised ResNet - 50 image - based classification was used on both original and augmented structure datasets to classify as either archipelago or continental. The classification was also implemented using topological similarity searching for association between atoms and the distance between them for further molecule identification. This study demonstrates the surprising effectiveness of image - based classification compared to traditional topological feature - based methods.

Set up Random Seed

In[]:=
SeedRandom["Asphaltenes",Method->"MersenneTwister"];

Import files

Original structures with augmented: Composite

In[]:=
SetDirectory[NotebookDirectory[]]
In[]:=
contis=Flatten@Join@Import["./Continentals-Augmented-5-Edits-Complete.mx"];
In[]:=
archis=Flatten@Join@Import["./Archipelagos-Augmented-5-Edits-Complete.mx"];
In[]:=
Length/@{contis,archis}
Out[]=
{1116,414}

Options for all plots

In[]:=
Needs["StatisticalPlots`"];​​SetOptions[{PairwiseScatterPlot,ArrayPlot,MatrixPlot,ListLinePlot,ListPlot,Histogram,BarChart,BoxWhiskerChart,DistributionChart,BubbleChart,PairedHistogram},BaseStyle->{FontFamily->Times,FontSize->12,FontColor->Black},LabelStyle->{FontFamily->Times,FontColor->Black},FrameStyle->Black];​​

Transfer Learning for asphaltene classification, ResNet-50

Label molecules and convert Graphics to Images

The molecule pictures are Graphics objects - while the NN needs Image objects. Convert graphics to images with Image function.
In[]:=
archipelagoImages=Image/@(MoleculePlot/@archis);
In[]:=
continentalImages=Image/@(MoleculePlot/@contis);
In[]:=
archiImagesLabels=Thread[archipelagoImages->"archi"];
In[]:=
contiImagesLabels=Thread[continentalImages->"conti"];

Prepare multiple training and testing Sets

Repeat the training specified number of times.
In[]:=
numberIndependentSets=10;​​archiSets=Table[ResourceFunction["TrainTestSplit"][archiImagesLabels],numberIndependentSets];(*Allthefirstlistsaretrainingandthesecondonesaretesting*)
In[]:=
contiSets=Table[ResourceFunction["TrainTestSplit"][contiImagesLabels],numberIndependentSets];(*Allthefirstlistsaretrainingandthesecondonesaretesting*)
Gather all the archipelago training sets
In[]:=
archiTrainings=archiSets[[All,1]];
Gather all the archipelago testing sets
In[]:=
archiTests=archiSets[[All,2]];
Gather all the continental training sets
In[]:=
contiTrainings=contiSets[[All,1]];
Gather all the continental testing sets
In[]:=
contiTests=contiSets[[All,2]];
Join all the archipelago and continental training sets to create asphaltene training sets.
In[]:=
asphalteneTrainingSets=RandomSample/@Flatten/@Transpose[{archiTrainings,contiTrainings}];
Join all the archipelago and continental testing sets to create asphaltene testing sets.
In[]:=
asphalteneTestingSets=RandomSample/@Flatten/@Transpose[{archiTests,contiTests}];
Verify that all sets are composed of the same length
In[]:=
Length/@asphalteneTrainingSets
Out[]=
{1224,1224,1224,1224,1224,1224,1224,1224,1224,1224}
In[]:=
Length/@asphalteneTestingSets
Out[]=
{306,306,306,306,306,306,306,306,306,306}

Training Function

Remove the linear layer from the pre-trained net.Remove the final classification layers of the trained net and we will replace them with the layers specific to this new task.Notice that the LinearLayer and SoftmaxLayer have been removed.
In[]:=
rn50Trainer[trainData_List]:=Module[{net,tempNet,newNet,trainedNet},​​net=NetModel["ResNet-50 Trained on ImageNet Competition Data"];​​tempNet=NetDrop[net,-2];​​newNet=NetAppend[tempNet,{"linearNew"->LinearLayer[],"softmax"->SoftmaxLayer[]},"Output"->NetDecoder[{"Class",{"archi","conti"}}]];​​trainedNet=NetTrain[newNet,trainData,All,LearningRateMultipliers->{"linearNew"->1,_->0},TargetDevice->"GPU",TrainingStoppingCriterion->"Loss",ValidationSet->Scaled[0.1]];​​Return[trainedNet];​​]

Train RN50 on each training set

In[]:=
trainedNetsRN50=rn50Trainer/@asphalteneTrainingSets;

Analysis of independent trainings

The total time spent training, in seconds
trainingTimes=#["TotalTrainingTime"]&/@trainedNetsRN50
Out[]=
{33.6592,33.3195,33.3345,34.4599,33.5403,26.7896,33.4416,33.5969,33.341,34.2949}
The mean number of input examples processed per second
examplesPerSecond=#["MeanExamplesPerSecond"]&/@trainedNetsRN50;
The mean loss obtained on the ValidationSet for the most recent validation measurement
validationLoss=#["ValidationLoss"]&/@trainedNetsRN50;
totalRounds=#["TotalRounds"]&/@trainedNetsRN50;​​(*TableForm[{{"Set 1","Set 2","Set 3","Set 4","Set 5"},trainingTimes,examplesPerSecond,validationLoss,totalRounds},TableHeadings->{{"Model","Training Times (s)","ExamplesPerSecond","ValidationLoss","TotalRounds"}},TableDirections->Row]*)
In[]:=

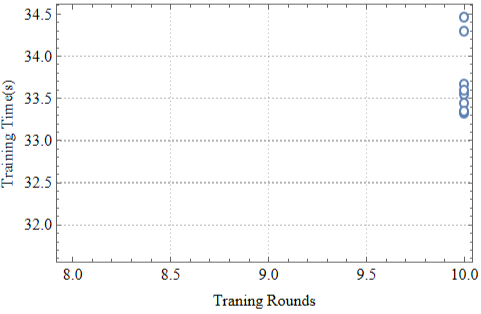

trainingTimesRounds=ListPlot[Transpose[{totalRounds,trainingTimes}],PlotMarkers->"OpenMarkers",PlotTheme->"Detailed",FrameLabel->{"Traning Rounds","Training Time(s)"}]
In[]:=
Export["./training-Time-Rounds-RN50-Composite.svg",trainingTimesRounds]
Out[]=
./training-Time-Rounds-RN50-Composite.svg
In[]:=

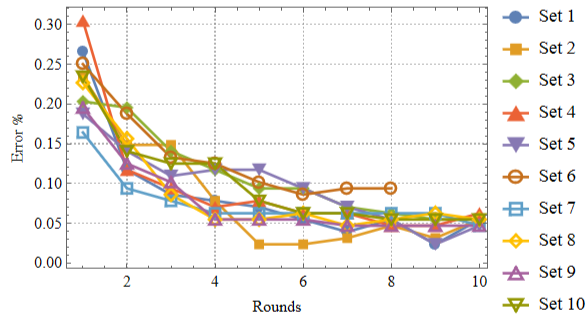

validationErrorRatePlot=ListLinePlot[#["ValidationMeasurementsLists"]["ErrorRate"]&/@trainedNetsRN50,PlotLegends->Table[StringJoin["Set ",ToString[i]],{i,numberIndependentSets}],FrameLabel->{"Rounds","Error %"},PlotMarkers->Automatic,PlotTheme->"Detailed",PlotRange->All](*PlotLabel->"Validation Error Rate",*)

Classifier Measurements

Gather measurements to document efficacy of classification
F1 score for each class, more sense if you are analyzing each network in more detail
Precision score for each class, more sense if you are analyzing each network in more detail
Time needed to classify one example of the test set
Marginal time to classify one example in a batch

CITE THIS NOTEBOOK

Machine learning to identify structural motifs in asphaltenes through ResNet-50​
by Arunkumar Sharma​
Wolfram Community, STAFF PICKS, July 1, 2024
​https://community.wolfram.com/groups/-/m/t/3202949
