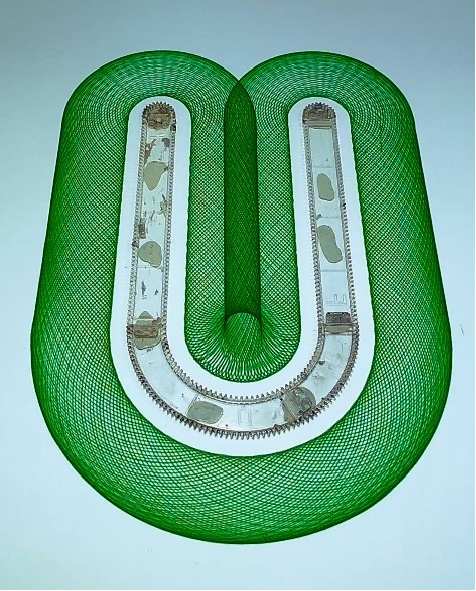

Inspired by a beautiful spirograph animation on Instagram, I recreated it in the Wolfram Language. While the original used a single color (green), I also created a multicolored pen version.
https://www.instagram.com/p/DGBehDutTom/

Parameter

Set the parameters of a letter U and a gear.
w=3/2;(*thicknessofU*)​​l=3Pi;(*lengthofstraightlineofU*)​​r0=4;(*radiusofthesmallersemicircleofU*)​​​​r1=67/26;(*radiusofgeardrawingspirogpraph*)​​d=2;(*distancefromthecentreofthegearonwhichapenisplaced*)​​​​interval=Pi/40;(*intervalbetweendrawings*)

initial position

When drawing a spirograph, get the positions of point on the letter U and center of the gear.
In[]:=
basepts[w_,l_,r0_,r1_,d_,interval_]:=Block[{line,center1,center2,rightp,rightc,leftp,leftc,p1,p2,p3,p4,p5,c1,c2,c3,c4,c5,p,c},​​(*arcs*)​​center1={0,r0+w};​​center2={r0+w/2,r0+w+l};​​p1=Table[r0*{Cos[i],Sin[i]},{i,3Pi/2,2Pi,interval/r0}]+Threaded@center1;​​c1=Table[(r0-r1)*{Cos[i],Sin[i]},{i,3Pi/2,2Pi,interval/r0}]+Threaded@center1;​​p2=Table[(r0+w)*{Cos[i],Sin[i]},{i,Pi,3/2*Pi,interval/(r0+w)}]+Threaded@center1;​​c2=Table[(r0+w+r1)*{Cos[i],Sin[i]},{i,Pi,3/2*Pi,interval/(r0+w)}]+Threaded@center1;​​p3=Table[w/2*{Cos[i],Sin[i]},{i,0,Pi,interval/(w/2)}]+Threaded@center2;​​c3=Table[(w/2+r1)*{Cos[i],Sin[i]},{i,0,Pi,interval/(w/2)}]+Threaded@center2;​​(*lines*)​​line=Table[{0,i},{i,0,l,interval}];​​p4=line+Threaded[{r0,r0+w}];​​c4=p4-Threaded[{r1,0}];​​p5=line+Threaded[{r0+w,r0+w}];​​c5=p5+Threaded[{r1,0}];​​(*base*)​​rightp=Join[p1,p2,p3,p4,p5];​​rightc=Join[c1,c2,c3,c4,c5];​​leftp=rightp/.{x_,y_}:>{-x,y};​​leftc=rightc/.{x_,y_}:>{-x,y};​​(*sortitng*)​​p=Join[rightp,leftp];​​c=Join[rightc,leftc];​​{p,c}=DeleteDuplicates/@{p,c};​​{p,c}=#[[Last[FindShortestTour@#]]]&/@{p,c};​​Most/@{p,c}​​];
In[]:=

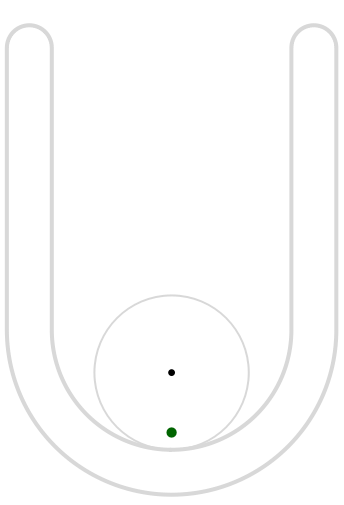

(*initialposition*)​​{p,c}=basepts[w,l,r0,r1,d,interval];​​letter=ListLinePlot[p,PlotStyle->LightGray,AspectRatio->Automatic,Axes->None];​​gear=Graphics[{LightGray,Circle[c[[1]],r1]}];​​gearcenter=Graphics[{PointSize[0.02],Black,Point@c[[1]]}];​​col=RGBColor@@({0,100,0}/255);​​pen=Graphics[{PointSize[0.03],col,Point[{0,r1+w-d}]}];​​​​Show[letter,gear,gearcenter,pen,ImageSize->Small]
Out[]=

Draw in a single color pen

In[]:=
(*predrawingpoint​​p:pointonletter,c:centerofgear,d:distancefromthecentreofthegearonwhichapenisplaced*)​​getq[p_,c_,w_,d_]:=Block[{result,slope,intercept,sol,sol1,sol2,x,y},​​result=If[c[[1]]-p[[1]]!=0,​​slope=(c[[2]]-p[[2]])/(c[[1]]-p[[1]]);​​intercept=p[[2]]-slope*p[[1]];​​(*sol=NSolveValues[EuclideanDistance[{x,y},c]==r&&y==slope*x+intercept,{x,y}];*)​​Off[FindRoot::jsing];​​sol1=FindRoot[{EuclideanDistance[{x,y},c]==d,y==slope*x+intercept},{{x,c[[1]]},{y,c[[2]]}}];​​sol2=FindRoot[{EuclideanDistance[{x,y},c]==d,y==slope*x+intercept},{{x,p[[1]]},{y,p[[2]]}}];​​On[FindRoot::jsing];​​sol={{x,y}/.sol1,{x,y}/.sol2};​​Nearest[sol,p,1][[1]],​​If[c[[2]]>w,c-{0,d},c+{0,d}]​​];​​result​​];​​​​(*drawingpoint​​q:predrawingpoint,c:centerofgear,r1:radiusofgear,m:lengthofgearmoved*)​​(*gett[q_,c_,r1_,m_]:=RotationTransform[-m/r1,c][q];*)​​gett[q_,c_,r1_,m_]:=Module[{θ,cosθ,sinθ,qShifted,rotated},​​θ=m/r1;​​cosθ=Cos[-θ];​​sinθ=Sin[-θ];​​qShifted=q-c;​​rotated={cosθ*qShifted[[1]]-sinθ*qShifted[[2]],sinθ*qShifted[[1]]+cosθ*qShifted[[2]]};​​rotated+c];​​​​spirograph[w_,l_,r0_,r1_,d_,interval_,lapcnt_]:=Block[{p,c,px,cx,mx,qx,tx},​​{p,c}=basepts[w,l,r0,r1,d,interval];​​px=Flatten[Table[p,{lapcnt}],1];​​(*centerofgear*)​​cx=Flatten[Table[c,{lapcnt}],1];​​(*lengthofgearmoved*)​​mx=Table[interval*i,{i,0,Length@px-1}];​​(*predrawingpoints*)​​qx=ParallelMap[getq[px[[#]],cx[[#]],w,d]&,Range[Length@px]];​​(*drawingpoints*)​​tx=ParallelMap[gett[qx[[#]],cx[[#]],r1,mx[[#]]]&,Range[Length@px]];​​{cx,tx}​​];
On how many laps does a gear return to their initial position?
In[]:=
lap=2Pi(w/2+r0/2+(r0+w)/2)+4l;​​lapcnt=LCM[lap/Pi,2*r1]/(lap/Pi)
Out[]=
67
Get the positions of the center of the gear and the drawing point.
Connect the start and end points.
Get its animation.

Draw in a multicolored pen

Use Spirographs with Mathematica–Wolfram Library Archive as a reference to draw a spirograph with a multi-coloured pen.
