Levich Equation for Rotating Disk Electrode

​
rotation speed ω (rpm)
4.23
angle (degrees)
The Levich equation models the variation of diffusion and solution flow around a rotating disk electrode (RDE). This Demonstration shows the dependence of the current on the rotation speed.

Details

In a rotating disk electrode, the electrolytes are made to flow past the electrode by convection. In this Demonstration, when the rotation speed increases, the flux of electroactive species to the surface of the electrode increases by convection (shown by the red arrow) and the current increases.

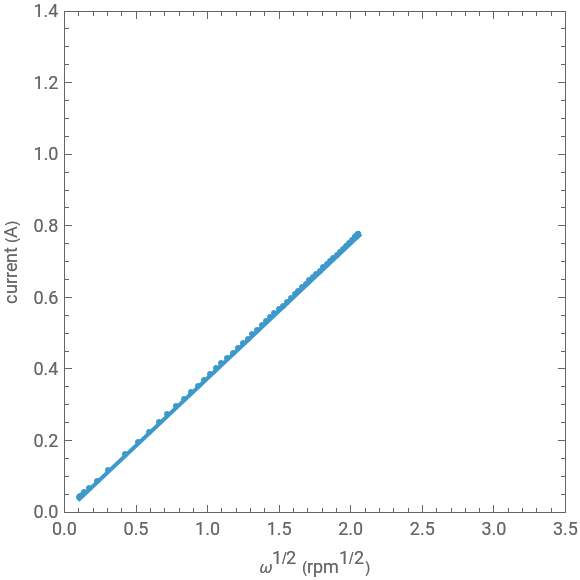

The Levich equation predicts the current observed at a rotating disk electrode and shows that the current is proportional to the square root of rotation speed. The equation is
i=0.62nFA
2/3
D
1/2
ω
-1/6
ν
C
, where
i
is the current limited in voltammogram (A),
n
is the number of electrons transferred,
F
is the Faraday constant (C/mol),
A
is the electrode area (
2
cm
),
D
is the diffusion coefficient
(
2
cm
/s),
ω
is rotation speed (radian/sec),
ν
is the kinematic viscosity of the solution
(
2
cm
/sec), and
C
is the concentration of the electroactive species
(mol/
3
cm
).
The Levich equation can be used to calculate the diffusion coefficient
D
as a function of the rotation speed
ω
and the current
i
.

References

[1] J. Wang, Analytical Electrochemistry, 3rd ed., New York: John Wiley & Sons, 2006.
