Define xyz point data
Define xyz point data
In[]:=
xyz=;
In[]:=
ListPointPlot3D[xyz,BoxRatios->Automatic,ImageSize->Large]
Out[]=
Get a suitable 2D (xy plane) boundary mesh for the point data
Get a suitable 2D (xy plane) boundary mesh for the point data
In[]:=
bm=BoundaryMesh[ConcaveHullMesh[xyz[[All,;;2]],22]]
Out[]=
In[]:=
RegionQ[bm]
Out[]=
True
Show the boundary mesh together with xy points
Show the boundary mesh together with xy points

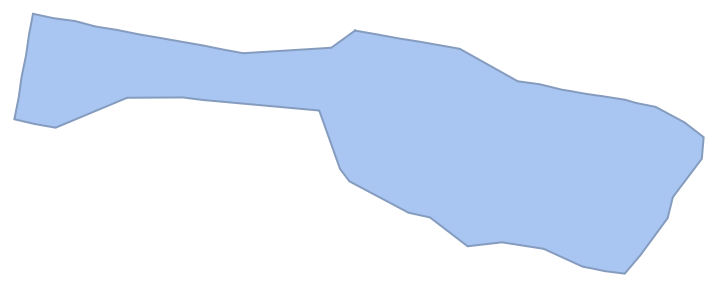

In[]:=
Show[bm,ListPlot[xyz[[All,;;2]]]]
Out[]=
Get RegionMemberFunction for the above boundary mesh
Get RegionMemberFunction for the above boundary mesh
In[]:=
rmf=RegionMember[bm]
Out[]=
RegionMemberFunction
Test the RegionMember Function
Test the RegionMember Function
Test for points inside the region
Test for points inside the region
In[]:=
points1=RandomPoint[bm,1000];
In[]:=
Show[bm,ListPlot[{points1},PlotStyle->Red]]
Out[]=
In[]:=
rmf[points1]//Counts
Out[]=
True1000

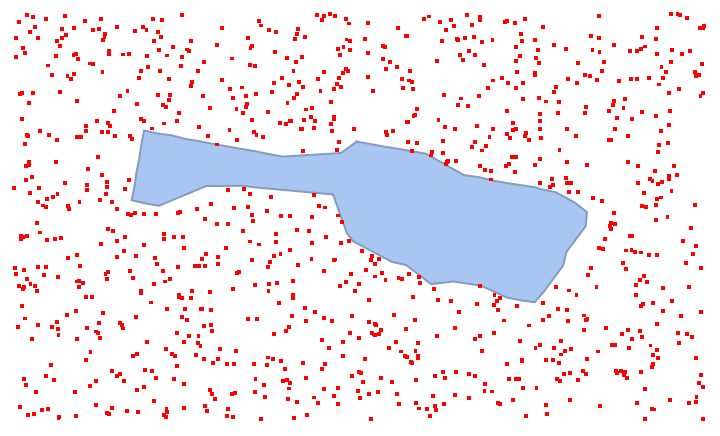

Test for points outside the region
Test for points outside the region
In[]:=
points2=RandomPoint[RegionDifference[Rectangle@@CoordinateBoundingBox[MeshCoordinates[bm],50],bm],1000];
In[]:=
Show[bm,ListPlot[{points2},PlotStyle->Red]]
Out[]=
In[]:=
rmf[points2]//Counts
Out[]=
False1000
Contour the z values over the xy plane and confine contours to the region defined above
Contour the z values over the xy plane and confine contours to the region defined above

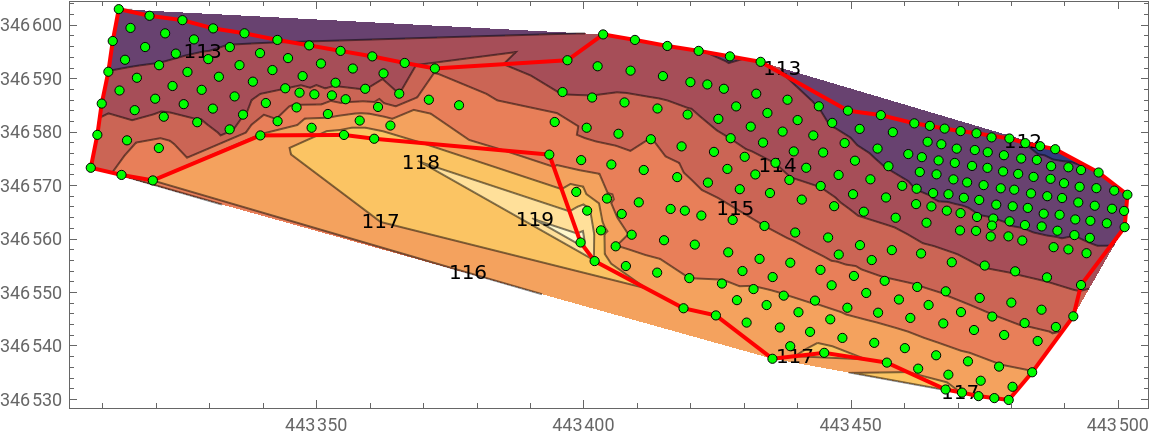

Attempting to exclude contours outside the region doesn’t seem to work as expected
Attempting to exclude contours outside the region doesn’t seem to work as expected
In[]:=
Show[ListContourPlot[xyz,ContourLabels->All,RegionFunction->Function[{x,y,z},rmf[{x,y}]](*,RegionFunction->Function[{x,y,z},RegionMember[bm][{x,y}]]*)],Graphics[{EdgeForm[{Red,Thick}],FaceForm[None],bm}],ListPlot[xyz[[All,1;;2]],PlotMarkers->{Graphics[{EdgeForm[{Black,Thickness@Small}],FaceForm[Green],Disk[]}],Scaled[0.03]}(*,PlotStyle->Black*)],AspectRatio->Automatic,ImageSize->Large]
Out[]=
Using a different region to exclude the contours does, however, work as expected
Using a different region to exclude the contours does, however, work as expected

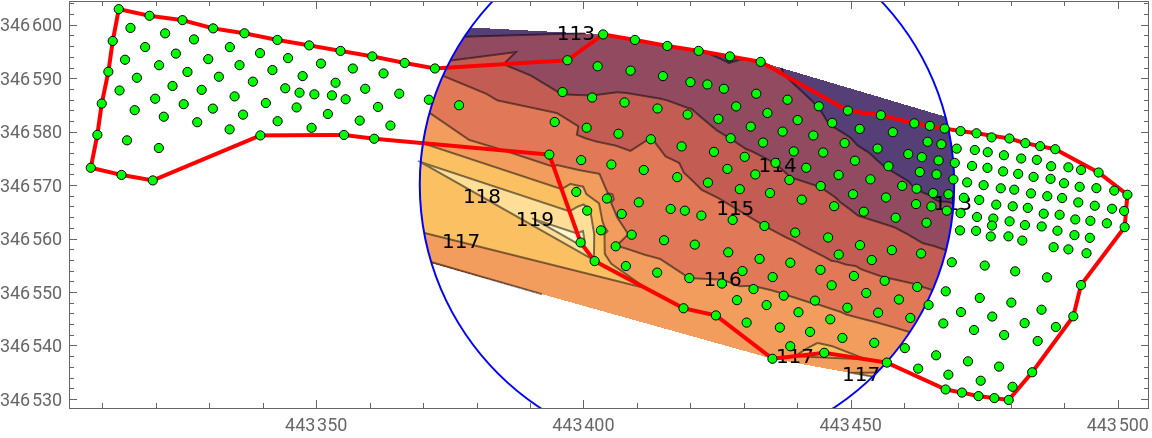

In[]:=
Show[ListContourPlot[xyz,ContourLabels->All,RegionFunction->Function[{x,y,z},RegionMember[Disk[RegionCentroid[bm],50],{x,y}]]],Graphics[{EdgeForm[{Red,Thick}],FaceForm[None],bm,EdgeForm[{Blue,Thickness@Medium}],FaceForm[None],Disk[RegionCentroid[bm],50]}],ListPlot[xyz[[All,1;;2]],PlotMarkers->{Graphics[{EdgeForm[{Black,Thickness@Small}],FaceForm[Green],Disk[]}],Scaled[0.03]}(*,PlotStyle->Black*)],AspectRatio->Automatic,ImageSize->Large]
Out[]=
