Point Spread and Modulation Transfer Functions of Zernike Wavefronts

Zernike number

Zernike coefficient

0.2

= 0.565685ρ3

-2sin(θ)

This Demonstration shows an aberration density plot,

and

profiles and a density plot of the point spread function, and

and

profiles of the modulation transfer function for a wavefront described by orthonormal Zernike circular polynomials

(ρ,θ)

. You can analyze any of 45 Zernike polynomials and select a Zernike coefficient between 0 and 1.

Details

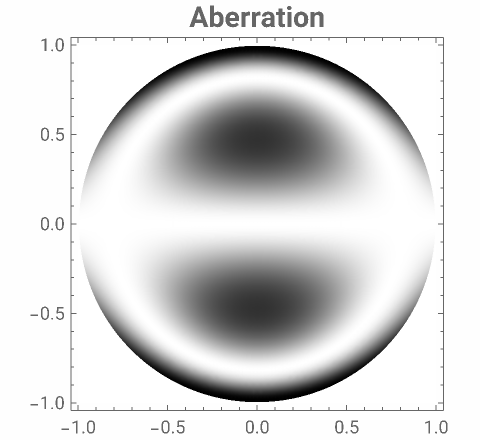

Wavefront aberrations are very important in studying the design, fabrication, and testing of all optical systems. Zernike polynomials, named after Nobel Prize winner Frits Zernike, are often used to describe these aberrations. The density plot shows what an interferogram testing an optical system with a given Zernike polynomial wavefront error would look like.

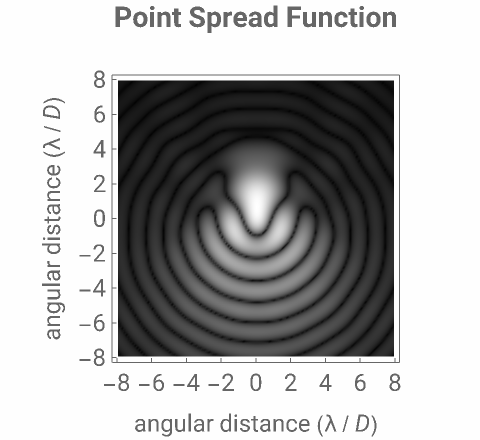

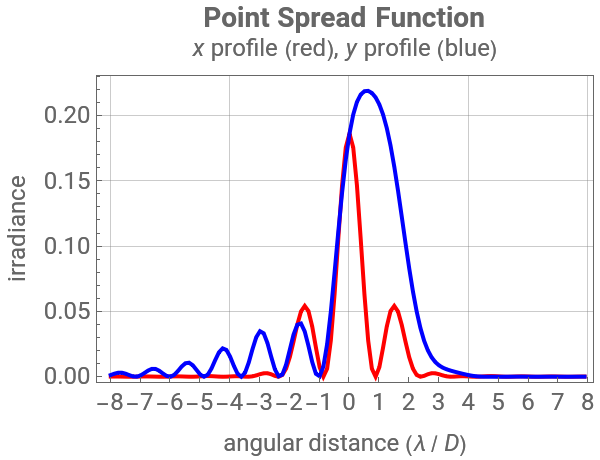

The point spread function (PSF), which is given by the square of the absolute value of the Fourier transform of the wavefront, shows what the intensity image of a point source would look like. The

axis of the PSF plot shows angular distance in units of the wavelength,

, divided by the optical system's pupil diameter,

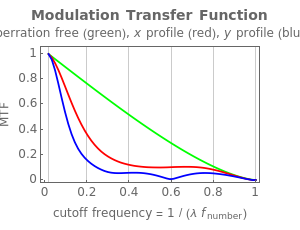

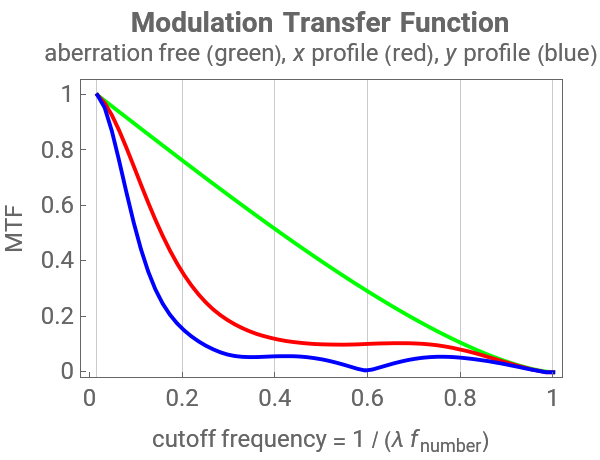

The modulation transfer function (MTF), which is given by the magnitude of the Fourier transform of the point spread function, gives the spatial frequency transfer function of an incoherent optical system. The cutoff frequency is given by

1/(λ

number

)

, where

is the wavelength, and

number

is the

number (or focal ratio) of the optical system given by the focal length divided by the pupil diameter.
