Nearest neighbors of HTML colors as measured by CIE76
As part of my research in rectifying fig (Ficus carica) cultivar morphology with genetic SNP data, it turns out I will need a well-tempered color scale. Here is a small step in that direction - albeit with the human CIE76 color perception metric. Many thanks to Rohit Namjoshi for demonstrating the use of VertexShapeFunction.
Nearest neighbors of HTML colors as measured by CIE76
As part of my research in rectifying fig (Ficus carica) cultivar morphology with genetic SNP data, it turns out I will need a well-tempered color scale. Here is a small step in that direction - albeit with the human CIE76 color perception metric. Many thanks to Rohit Namjoshi for demonstrating the use of VertexShapeFunction.
As part of my research in rectifying fig (Ficus carica) cultivar morphology with genetic SNP data, it turns out I will need a well-tempered color scale. Here is a small step in that direction - albeit with the human CIE76 color perception metric. Many thanks to Rohit Namjoshi for demonstrating the use of VertexShapeFunction.
In[]:=
HuedVerticesGraph[annotatededges_,vertexsize_,graphwidth_,aspectratio_,graphlayout_]:=Block[(*localnames*){},(*computation*)vsf[width_][pos_,label_,_]:=Inset[Framed[Pane[Spacer[width],{width,width}],Backgroundlabel,FrameStyle{Black,Dashing[{}]}],pos];etG=EdgeTaggedGraph[annotatededges,BaseStyleArrowheads[Medium],VertexShapeFunctionvsf[vertexsize],GraphLayoutgraphlayout,AspectRatioaspectratio,ImageSize{graphwidth,Automatic},PerformanceGoal"Quality"];etG];
In[]:=
(*packagefile*)packageDir=FileNameJoin[{SystemInformation["FrontEnd","UserDocumentsDirectory"],"Mathematica Packages","Least Bridges Graphs"}];packageFile=FileNameJoin[{packageDir,"000 Least Bridges Graphs Package.m"}];If[!FileExistsQ[packageFile],Print[Style["Can't find "<>packageFile,{Bold,Red,18}]],Get[packageFile]];(*LeastBridgesGrapharguments*)edgeStyleType="plain edges";labelEdges=2;edgeDistanceSup=∞;chatty={False,False,False};(*HuedVerticesGrapharguments*)vertexSize=10;(*printer'spoints*)graphWidth=896;aspectRatio=1.25;graphLayout="LayeredEmbedding";(*Datainitialization*)htmlColors=(If[(First[#]"Aqua")||(First[#]"Fuchsia"),Nothing,#]&/@ColorData["HTML","ColorRules"])[[;;,2]];htmlColorsCount=Length[htmlColors];edgeDistances=Flatten[Table[Table[{htmlColors[[i]]htmlColors[[j]],ColorDistance[htmlColors[[i]],htmlColors[[j]],DistanceFunction"CIE76"]},{j,i+1,htmlColorsCount}],{i,1,htmlColorsCount-1}],1];edgeDistancesCount=Length[edgeDistances];(*computationandoutput*){classHues,classPartitions,graphEdges}=LeastBridgesGraphEdges[edgeDistances,edgeStyleType,labelEdges,edgeDistanceSup,chatty];Print[Column[{Style["Nearest neighbors of HTML colors as measured by CIE76",{Black,14}],HuedVerticesGraph[graphEdges,vertexSize,graphWidth,aspectRatio,graphLayout]},Center,2]];

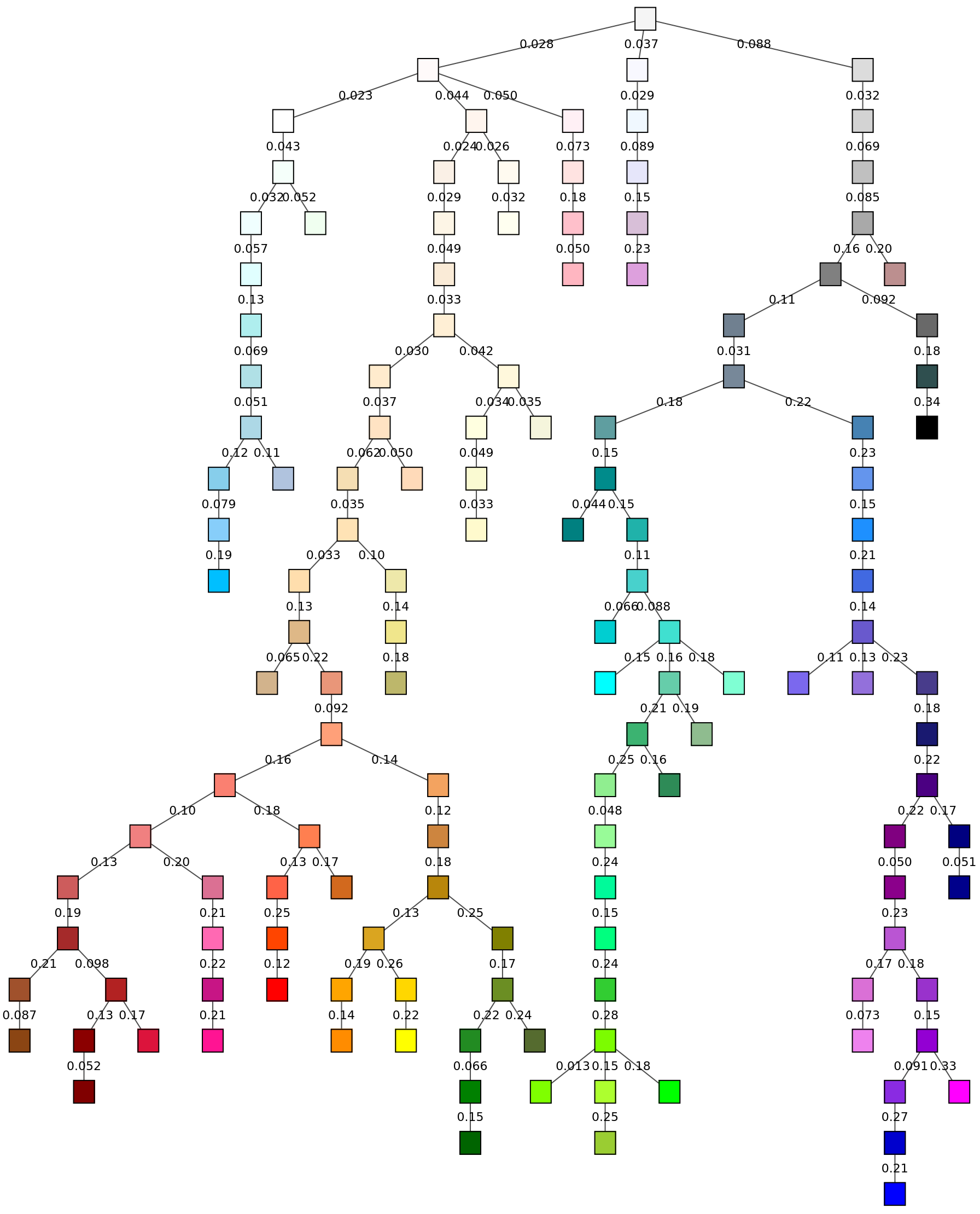

Nearest neighbors of HTML colors as measured by CIE76 |
