Transformations of Gray Levels in an Image

transformation

logarithmic

power

σ

1.×

-6

10

γ

1

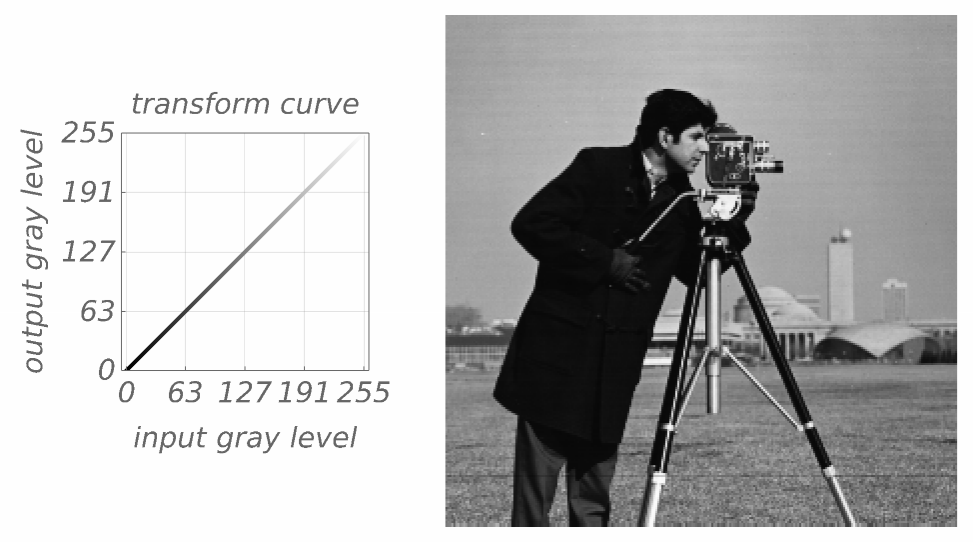

This Demonstration shows how the contrast of a grayscale image can be modified by applying the common gray level transformations found in typical image processing textbooks, that is, the logarithm and the

γ

transformations.

Details

The logarithm and the

γ

(power-law) transformations are useful in varying the dynamic range of the darker or lighter parts of the gray levels in an image. In this Demonstration, the logarithm transformation is defined by

y=clog(1+(

σ

e

-1)x)

and the power law by

y=c

γ

x

,

in which the constant

c

is scaled to set the maximum output of the transformation to the maximum gray level (in an 8-bit grayscale image this value is 255).

Varying the parameters

σ

or

γ

(depending on the transformation chosen), we can modify the contrast in the image and highlight details not seen in the original.
