Adiabatic Mixing of Two Moist Air Streams

​
inlet air stream 1:
dry-bulb temperature in °C
43.3
wet-bulb temperature in °C
37.8
inlet air stream 2:
dry-bulb temperature in °C
26.7
relative humidity in %
80
volumetric flow rates in
3
m
/min:
inlet air stream 1
112
inlet air stream 2
28

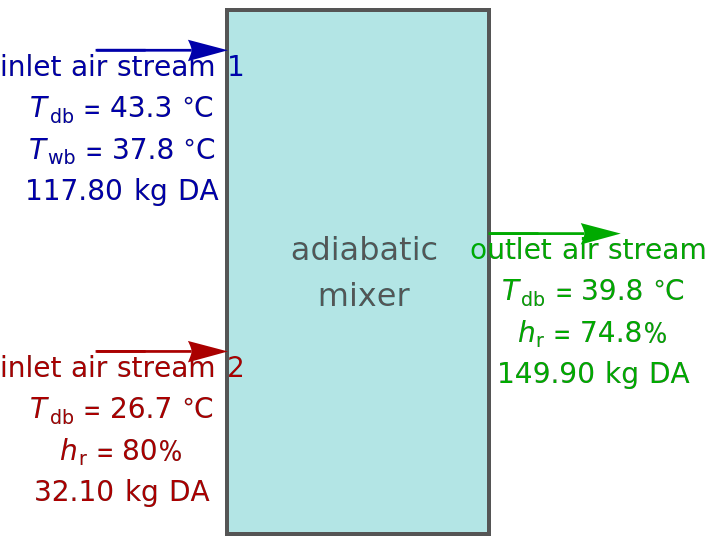

setup
psychrometric data
inlet air stream 1
inlet air stream 2
outlet air stream
Two moist inlet air streams are mixed adiabatically. This Demonstration uses mass and energy balance equations to determine the outlet air stream. You can set the dry-bulb and wet-bulb temperatures of the first inlet stream and the dry-bulb temperature and relative humidity
h
r
of the second inlet stream. You can change the values of the volumetric flow rates of the inlet air streams. The "psychrometric data" button shows a chart with all the relevant thermal parameters for the two inlet air streams and the outlet air stream. "DA" refers to dry air. The data includes the dry-bulb, wet-bulb and dew point temperatures expressed in
°C
, the relative humidity in
%
, the absolute humidity or moisture content in
kg
H
2
O/kgDA
, the humid volume in
3
m
kgDA
and the specific enthalpy in
kJ/kgDA
.

References

[1] R. M. Felder and R. W. Rousseau, Elementary Principles of Chemical Processes, 3rd ed., New York: John Wiley & Sons, 2005.

Permanent Citation

Housam Binous, Ahmed Bellagi
​
​"Adiabatic Mixing of Two Moist Air Streams"​
​http://demonstrations.wolfram.com/AdiabaticMixingOfTwoMoistAirStreams/​
​Wolfram Demonstrations Project​
​Published: October 27, 2016
