Dynamical Behavior of a Duffing Oscillator
Dynamical Behavior of a Duffing Oscillator

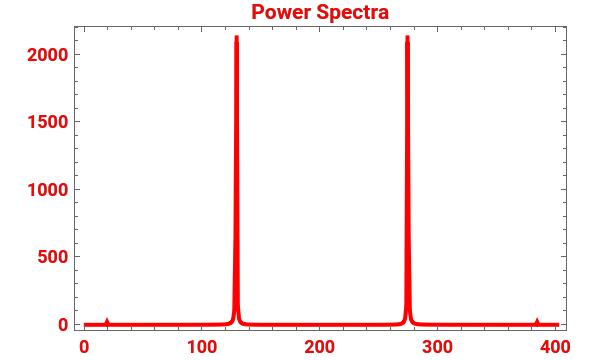

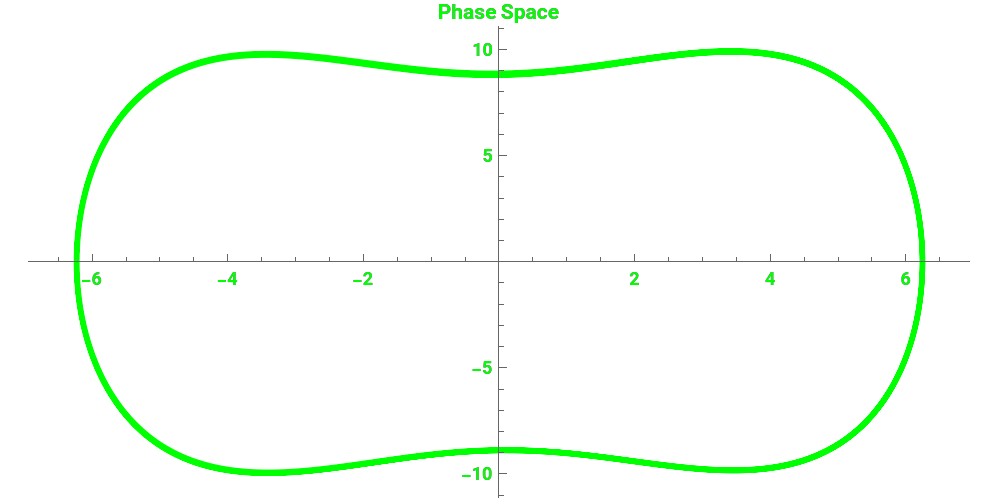

This Demonstration shows some possible solutions for the Duffing oscillator: +γ-x+ϵ=Γcos(Ωt), a dynamical system that can exhibit chaotic behavior. Plots are shown of variations of the power spectrum, scalogram, and phase space trajectory with changes in the forcing amplitude parameter , with fixed values of the other parameters. The power spectrum and the scalogram exhibit the frequency content of the solution.
..
x
x
2
ω
3
x
Γ
