PSO Determination of the Two Nonreactive Azeotropes for Methyl Formate Chemistry at 3 bars
​Housam Binous
​The esterification reaction of methanol and formic acid produces water and methyl formate.​The extent of the reaction is limited by the equilibrium constant, taken to be 5.​This notebook plots the bubble temperature distribution, which indicates that the negative azeotrope between water and formic acid is a stable node with the highest boiling temperature (shown in blue). There is another nonreactive azeotrope in the system between methanol and methyl formate (a positive azeotrope and an unstable node with a low boiling temperature show in magenta). Finally, pure water, methyl formate, methanol, and formic acid are all saddle points. There is only one distillation region in the quaternary diagram.​Particle Swarm Optimization (PSO) is used to fetch the transformed compositions of the two azeotropes (corresponding to the minimum and maximum bubble temperatures). These are given in Ref. 1:A: 0.10478 and 1.0 with a bubble temperature approximately equal to 144°C B: 0.0865 and 0.0 with a bubble temperature approximately equal to 63.7°C ​The code also displays the iso-temperature curves and the temperature (in °C).​​

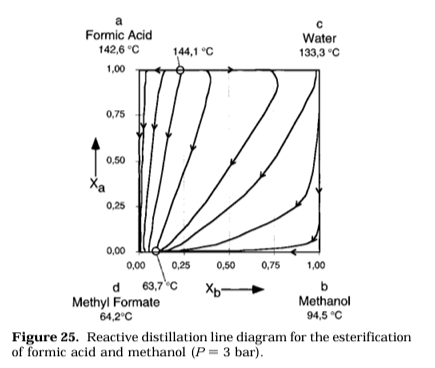

​​​References:​[1] B. Bessling, G. Schembecker, and K. H. Simmrock, “Design of Processes with Reactive Distillation Line Diagrams,” Industrial and Engineering Chemistry Research, 36(8), 1997 pp. 3032–3042. https://doi.org/10.1021/ie960727p​
In[]:=
​​G1[i_,t_]:=Exp1-Log
4
∑
j=1
x[j]A1[i,j,t]-
4
∑
k=1
x[k]A1[k,i,t]
4
∑
j=1
x[j]A1[k,j,t]
/.x[3]x3[t]/.x[4]x4[t]/.x[1]x1[t]/.x[2]x2[t];​​A1[i_,j_,t_]:=V[j]/V[i]Exp[-a[i,j]/(RT[t])];
In[]:=
a[1,1]=0.0;​​a[1,2]=2001.7;​​a[1,3]=515.9;​​a[1,4]=-194.6;​​a[2,1]=80.1;​​a[2,2]=0.0;​​a[2,3]=151.7973;​​a[3,4]=0.0;​​a[3,1]=74.5;​​a[3,2]=907.572;​​a[3,3]=0.0;​​a[4,3]=0.0;​​a[4,1]=758.5;​​a[4,4]=0.0;​​a[2,4]=0.0;​​a[4,2]=0.0;
In[]:=
V[3]=40.73;​​V[4]=37.91;​​V[2]=61.54;​​V[1]=18.07;
In[]:=
R=1.987;P=3.0;
In[]:=
Psat1[i_,t_]:=Exp[(Aa1[i]-Ba1[i]/(T[t]-273.15+Ca1[i]))];
In[]:=
Aa1[4]=9.3703;​​Aa1[2]=10.2965;​​Ba1[4]=2982.4463;Ba1[2]=2801.0487;​​Ca1[4]=218.0;Ca1[2]=240.37;​​​​Ba1[3]=3643.3136;Aa1[3]=11.9869;Ca1[3]=239.726;​​Aa1[1]=11.9647;Ca1[1]=233.426;Ba1[1]=3984.9228;
In[]:=
Keq[t_]:=5;
In[]:=
Ksym[t_]:=10^(-18.12+7099/(T[t]));
In[]:=
x2[t_]:=1-x1[t]-x3[t]-x4[t];
In[]:=
y3[t_]:=Chop[Psat1[3,t]G1[3,t]x3[t]/((2(1-y4[t]+Sqrt[(1+4Ksym[t]Py4[t](2-y4[t]))]))/((2-y4[t])(1+Sqrt[(1+4Ksym[t]Py4[t](2-y4[t]))])))1/P];​​y1[t_]:=Chop[Psat1[1,t]G1[1,t]x1[t]/((2(1-y4[t]+Sqrt[(1+4Ksym[t]Py4[t](2-y4[t]))]))/((2-y4[t])(1+Sqrt[(1+4Ksym[t]Py4[t](2-y4[t]))])))1/P];
In[]:=
Y1[t_]:=Chop[y4[t]+y1[t]];​​Y2[t_]:=Chop[y3[t]+y1[t]];
In[]:=
LaunchKernels[]
Out[]=
KernelObject
Local
KernelID: 1

In[]:=
tbl=Parallelize@Table[{{i,j},T[t]/.Quiet[FindRoot[{PPsat1[4,t]G1[4,t]x4[t]/((1+Sqrt[(1+4Ksym[t]Psat1[4,t])])/(1+Sqrt[(1+4Ksym[t]Py4[t](2-y4[t]))]))+Psat1[2,t]G1[2,t]x2[t]/((2(1-y4[t]+Sqrt[(1+4Ksym[t]Py4[t](2-y4[t]))]))/((2-y4[t])(1+Sqrt[(1+4Ksym[t]Py4[t](2-y4[t]))])))+Psat1[3,t]G1[3,t]x3[t]/((2(1-y4[t]+Sqrt[(1+4Ksym[t]Py4[t](2-y4[t]))]))/((2-y4[t])(1+Sqrt[(1+4Ksym[t]Py4[t](2-y4[t]))])))+Psat1[1,t]G1[1,t]x1[t]/((2(1-y4[t]+Sqrt[(1+4Ksym[t]Py4[t](2-y4[t]))]))/((2-y4[t])(1+Sqrt[(1+4Ksym[t]Py4[t](2-y4[t]))]))),y4[t]Psat1[4,t]G1[4,t]x4[t]/((1+Sqrt[(1+4Ksym[t]Psat1[4,t])])/(1+Sqrt[(1+4Ksym[t]Py4[t](2-y4[t]))]))1/P,ix4[t]+x1[t],​​jx3[t]+x1[t],G1[1,t]G1[2,t]x1[t]x2[t]-G1[3,t]G1[4,t]x3[t]x4[t]/Keq[t]0},{x1[t],0.01},{x3[t],0.01},{x4[t],0.01},{y4[t],0.2},{T[t],330}]]//Chop},{j,0,1,0.05},{i,0,1,0.05}];(*maytakeafewminutes*)
In[]:=
tblf=Flatten[tbl,1];
In[]:=
f=Interpolation[tblf];
In[]:=

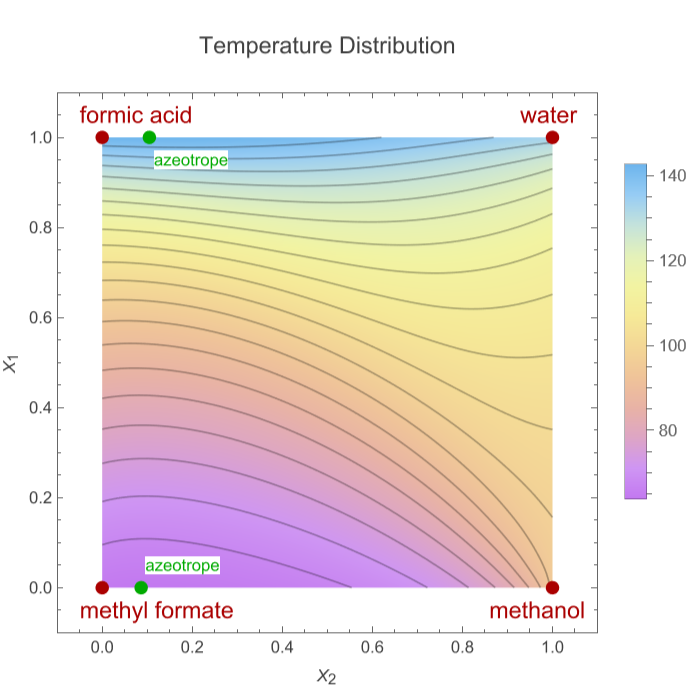

pltD2=Show[DensityPlot[f[ys,xs]-273.15,{xs,0,1},{ys,0,1},ColorFunction"Pastel",PlotPoints50,Mesh20,MeshFunctions(f[#2,#1]&),PlotRange{{-0.1,1.1},{-0.1,1.1}},PlotLabel->Style["\nTemperature Distribution\n",14],FrameLabel{"
X
2
","
X
1
"},PlotLegends->Automatic],Graphics[{Style[Text["methyl formate",{-0.05,-0.05},{-1,0}],Darker@Red,14],Style[Text["formic acid",{-0.05,1.05},{-1,0}],Darker@Red,14],Style[Text["water",{1.03,1.05},{0.6,0}],Darker@Red,14],Style[Text["methanol",{1.03,-0.05},{0.6,0}],Darker@Red,14],Style[Text["azeotrope",{0.115,0.95},{-1,0}],Darker@Green,10,Background->White],Style[Text["azeotrope",{0.096,0.05},{-1,0}],Darker@Green,10,Background->White],Darker@Red,PointSize[0.025],Point[{1,0}],Point[{1,1}],Point[{0,1}],Point[{0,0}],Darker@Green,Point[{0.10478,1}],Point[{0.0865,0}]}]]
Out[]=
SwarmDim=2;(*2Dproblem*)​​​​(*upperandlowerboundsfothesearchdomain*)​​FitnessLB=0{1,1};​​FitnessUB=1{1,1};​​​​c1=1.42;c2=1.42;w=0.72984;(*psoparameters*)
Seeking nonreactive azeotropes loci using PSO
PSO convergence plot
PSO convergence plot
